With AX4N Transmission
With AX4N Transmission

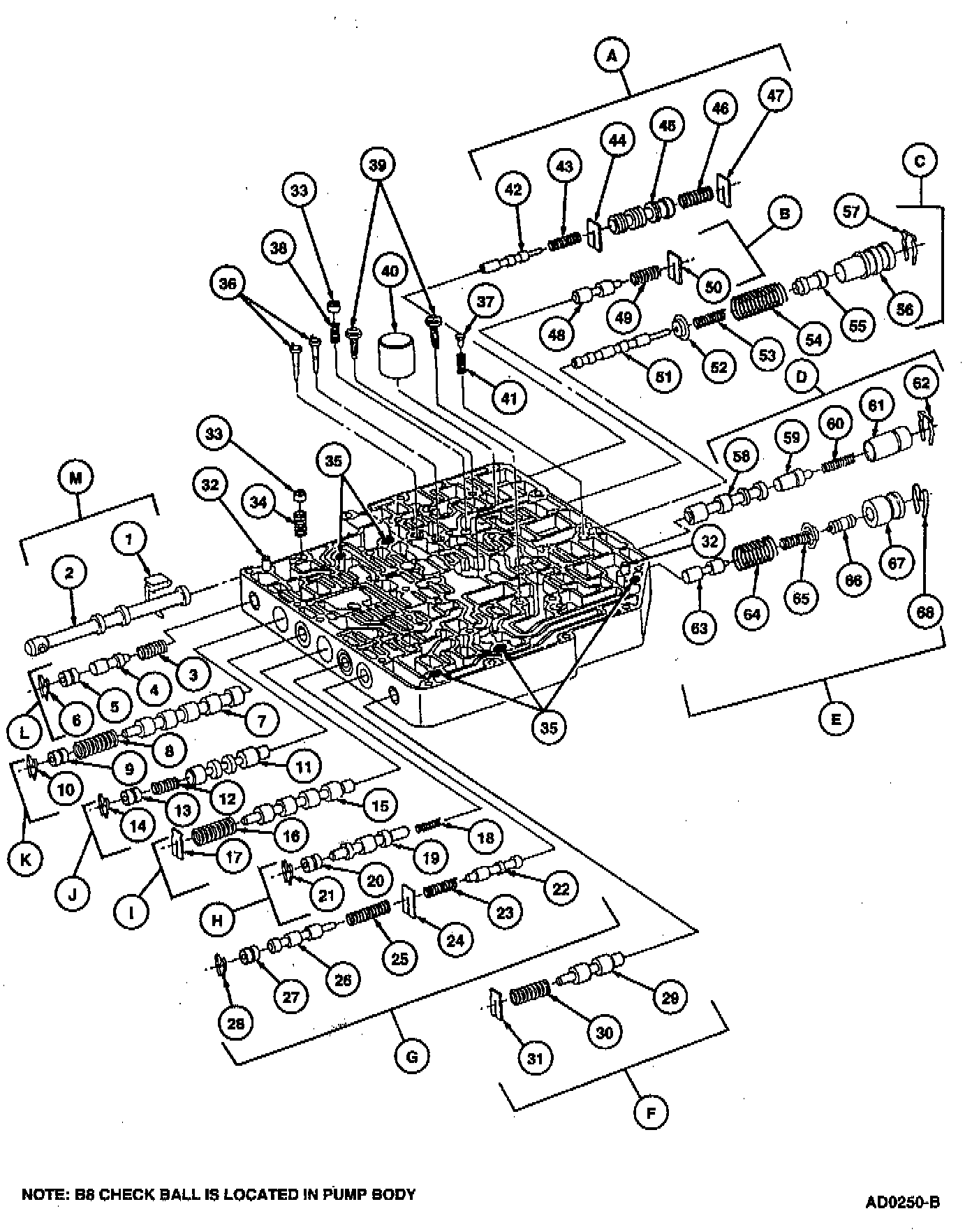

Main Control Valve Body Assembly, (Part 1 Of 2):

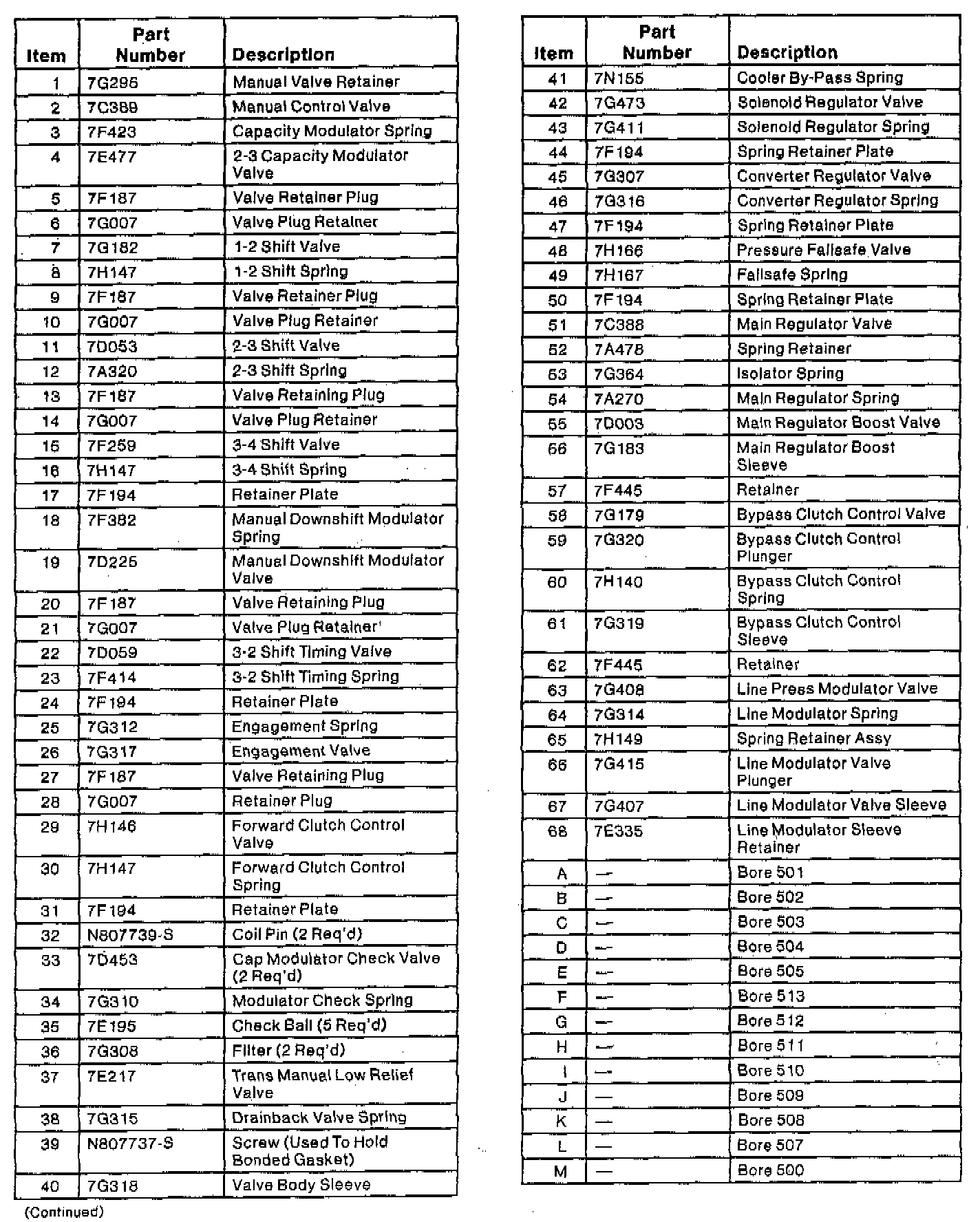

Main Control Valve Body Assembly, (Part 2 Of 2):
