Mercury
>>
1997
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C263
C263

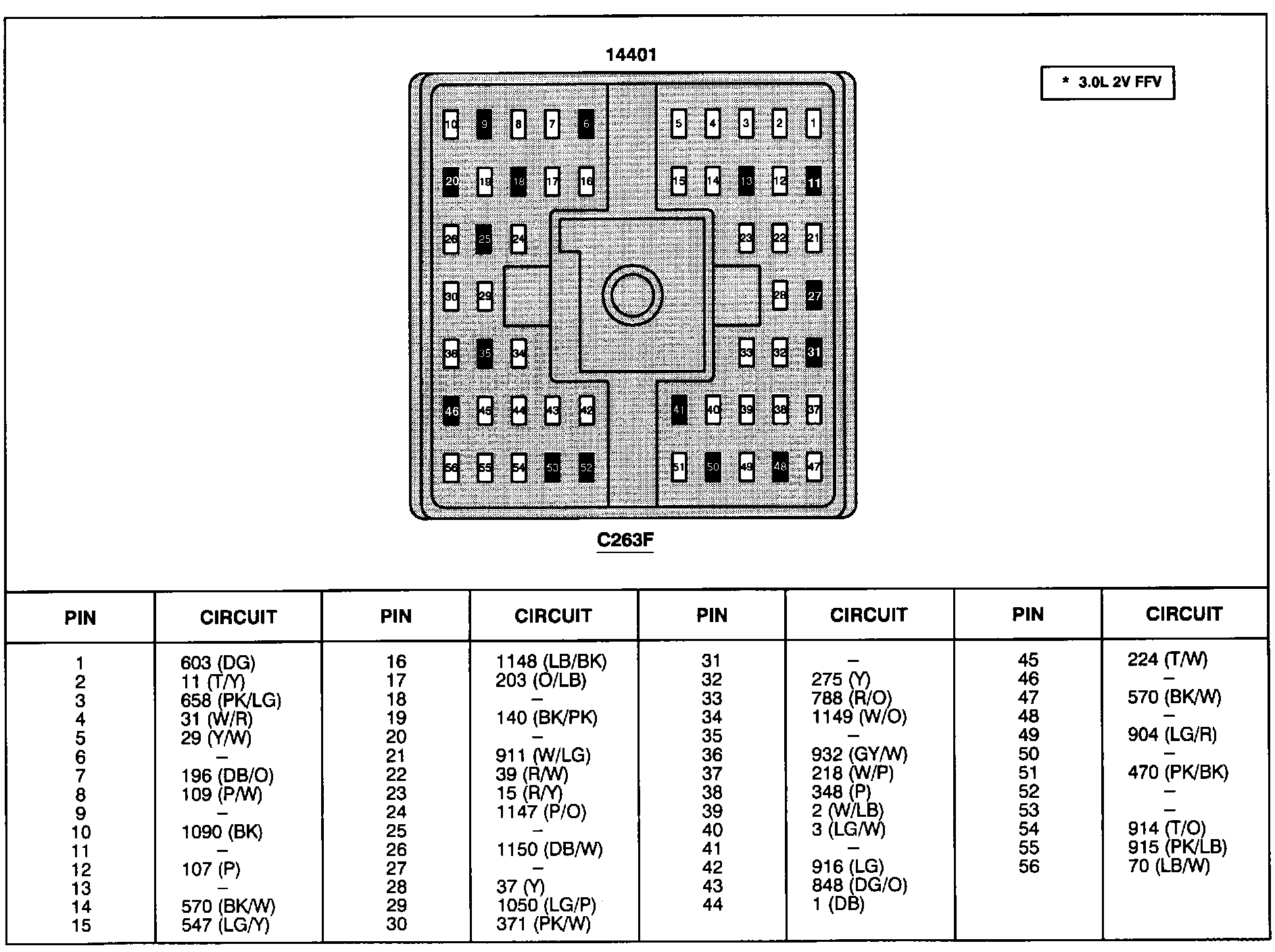

In-Line Connector Faces - C263F:

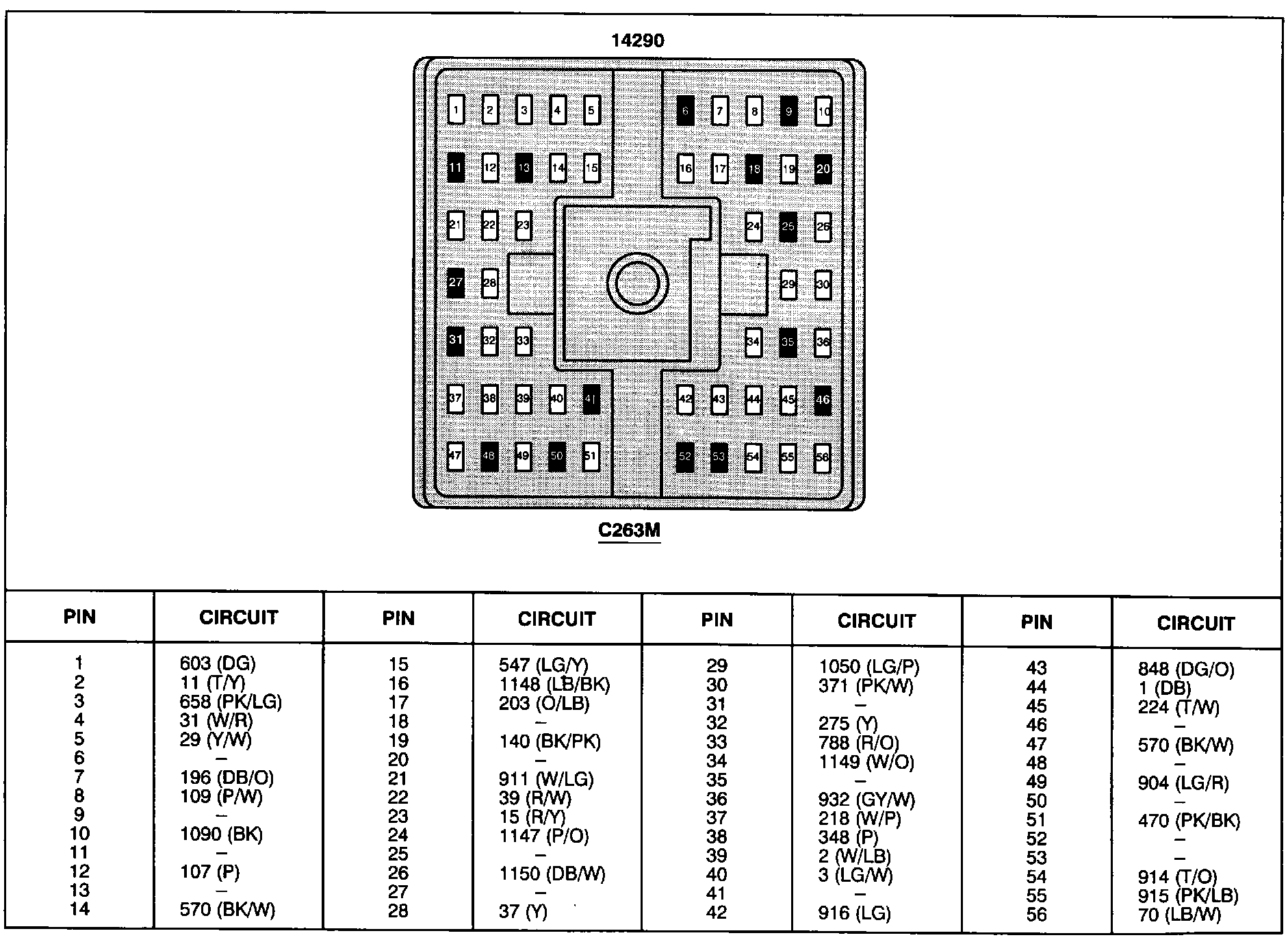

In-Line Connector Faces - C263M:
