Park Brake Release Service

Park Brake Lever:

REMOVAL

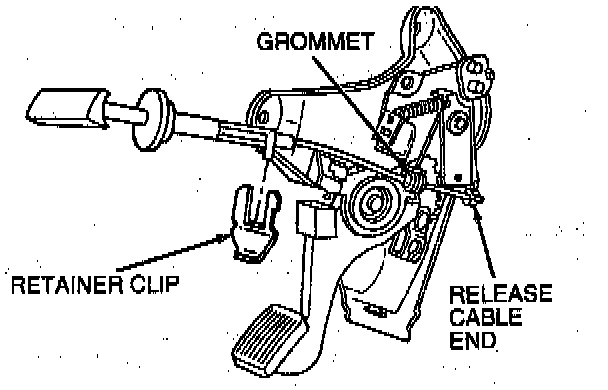

- Disconnect release cable from parking brake control release arm and remove release cable grommet from parking brake control.
- From under instrument panel, use a screwdriver to pry off and remove retainer clip securing cable and parking brake release handle to instrument panel.
- Pull parking brake release handle and cable assembly out of instrument panel.

INSTALLATION
- Start cable and parking brake release handle assembly through locating hole in instrument panel
- Install retainer clip that secures parking brake release handle to instrument panel.
- Connect release cable to parking brake control release arm and install release cable grommet to parking brake control.
