Mechanical Specifications

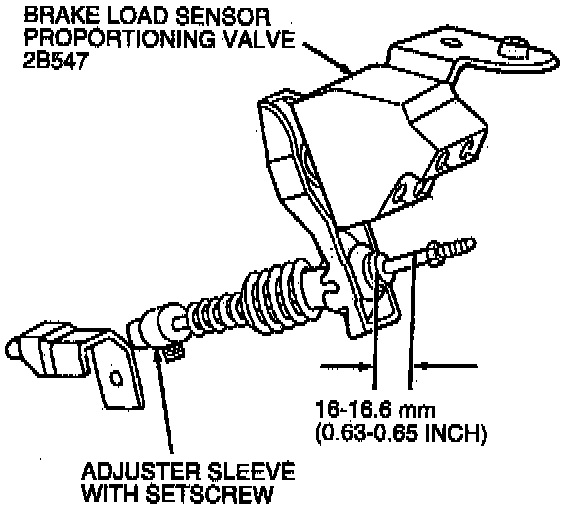

Brake Load Sensor Proportioning Valve:

Adjust with vehicle at curb load level. Fuel level at 3/4 tank.

Bracket to Lower Arm 10-14 Nm (89-123 inch lbs.)
Mounting 12-15 Nm (107-132 inch lbs.)
