Rear Door Window Glass Weatherstrip
>>
Service and Repair
>>
Rear Door-Inside Glass Weatherstrip
>>
Removal
Removal
1.
Open rear door.
2.
Remove front door
trim panel
and front door window garnish moulding.
3.

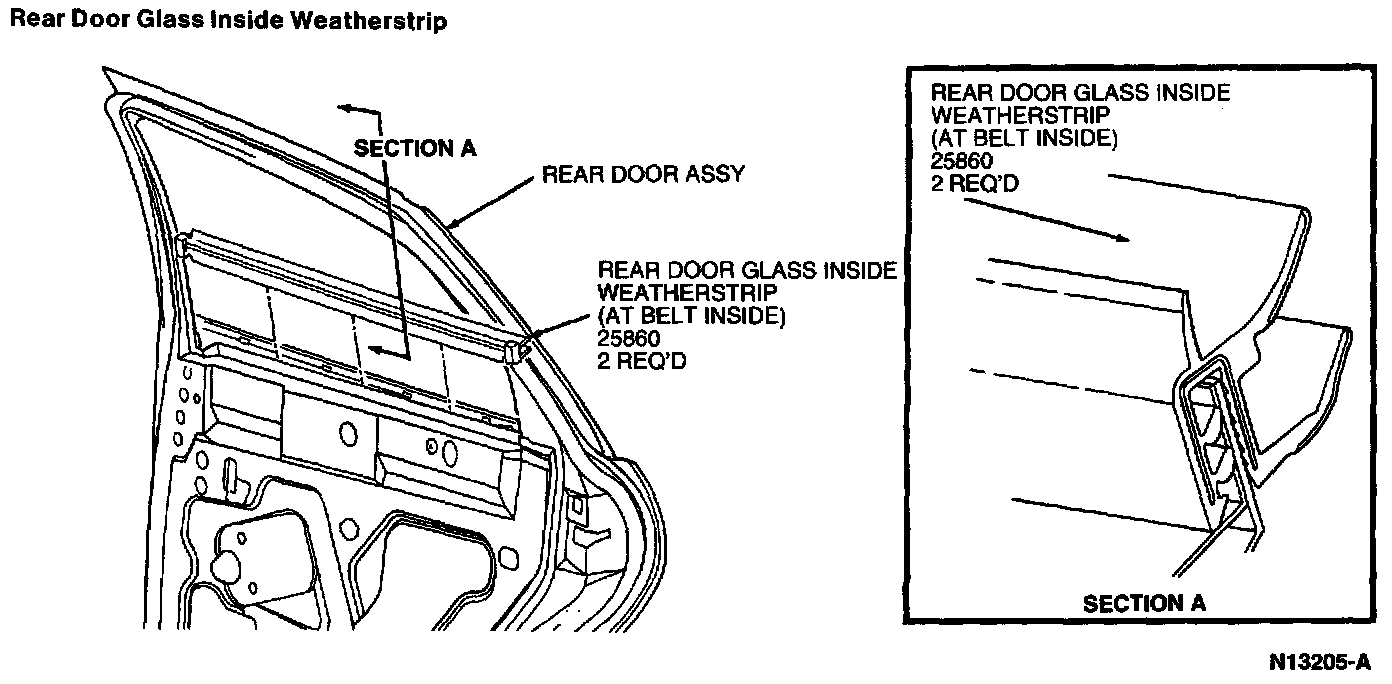

Carefully pry rear door glass inside
weatherstrip
up off rear door.
