Removal

1. Open rear door.

2. Remove center body pillar inside upper finish panel and rear door scuff plate.

3. On Sedans, remove quarter trim lower panel.

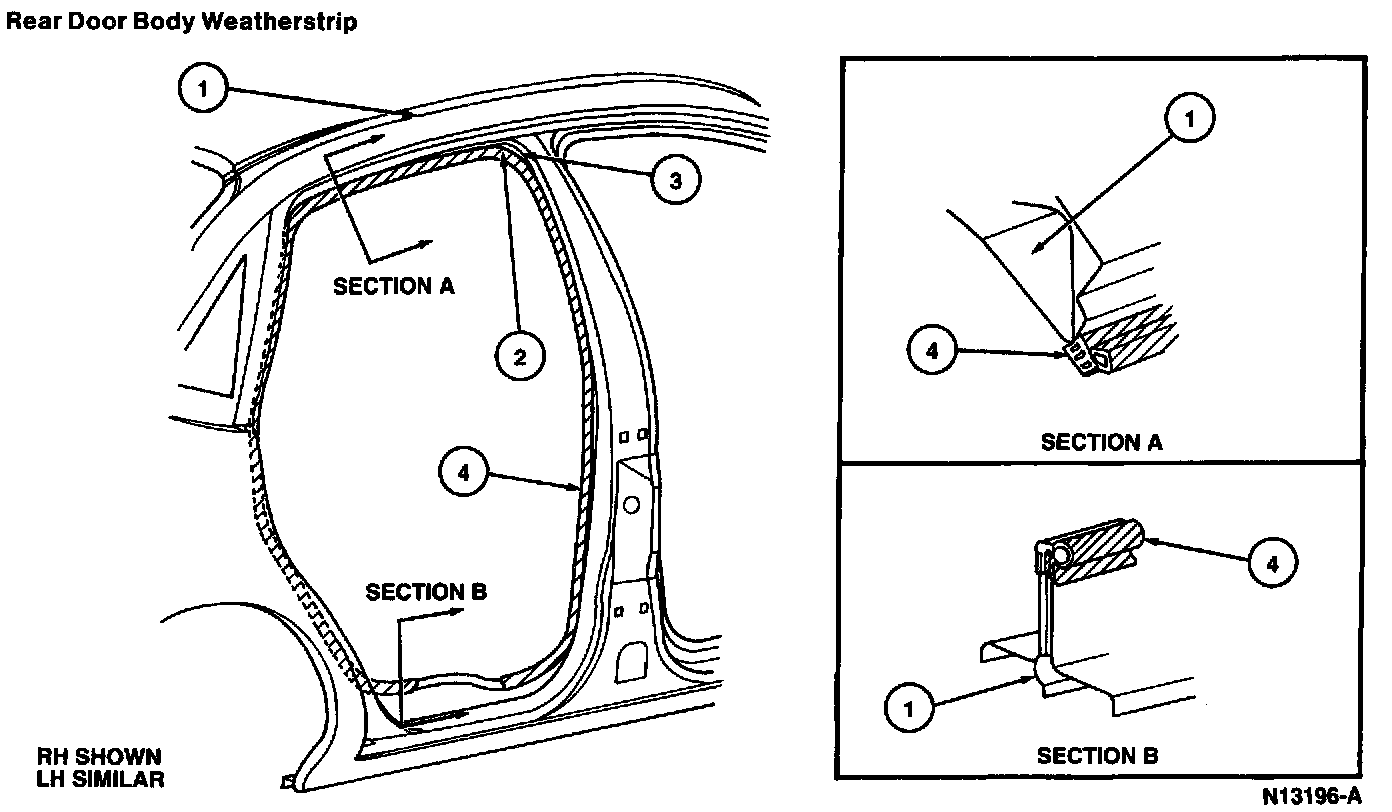

4. On Wagons, remove rear seat cushion and pull RH quarter trim panel or LH quarter trim panel out from vehicle far enough to remove rear door body weatherstrip.

5. Locate paint dot on rear door body weatherstrip at upper corner and mark a reference point on door jamb using a non-permanent removeable marker or grease pencil.

6. Starting at one end, carefully pull rear door body weatherstrip away from body until completely removed from vehicle. Do not stretch rear door body weatherstrip to the point of damage.
