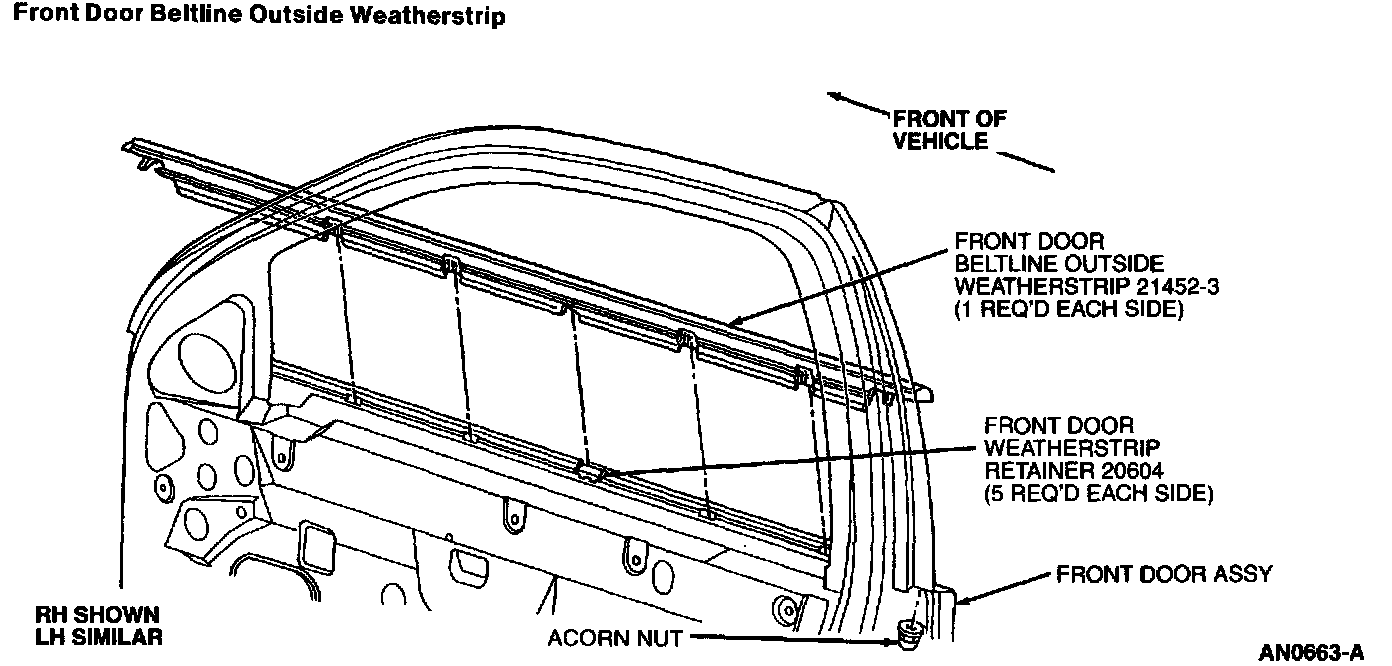

Removal




1. Remove outside rear view mirror.

2. Remove acorn nut at the "B" pillar.

3. Starting at front, carefully pull front door belt line outside weatherstrip up off front door.

4. Remove front door belt line outside weatherstrip from vehicle.

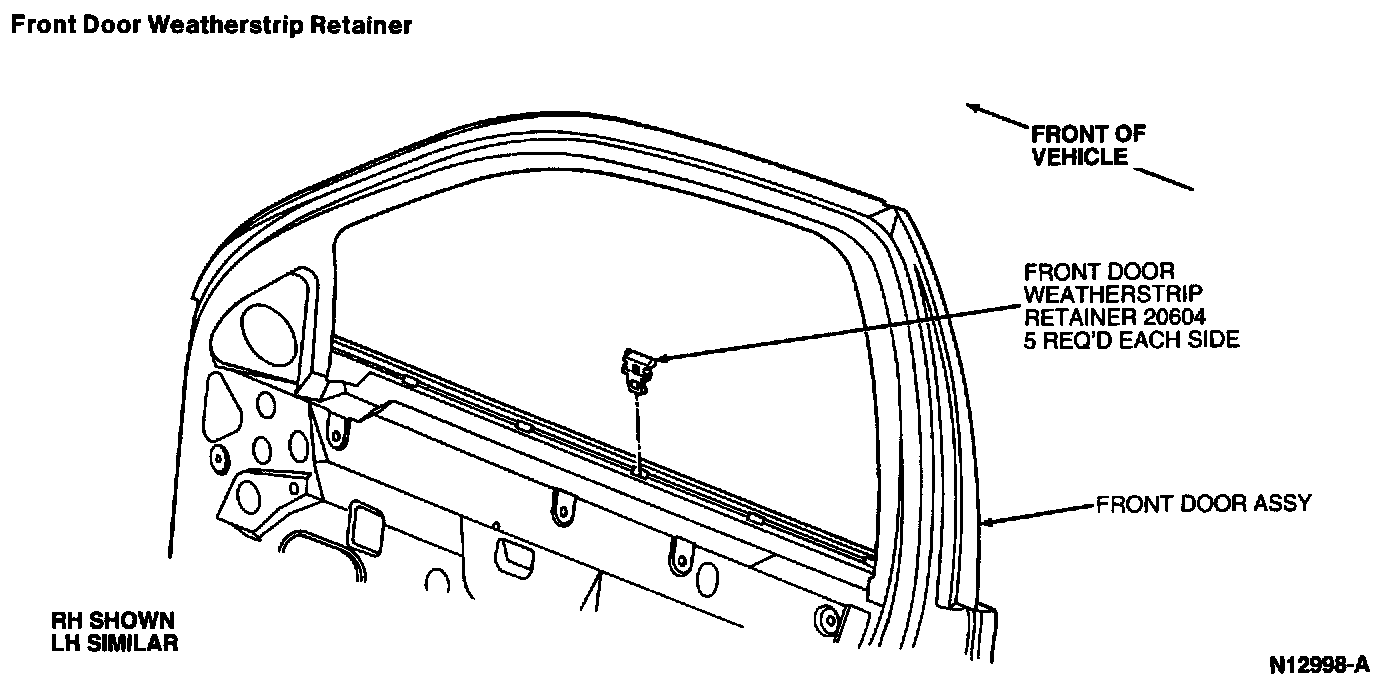

5. If necessary, replace any front door weatherstrip retainers that are damaged.
