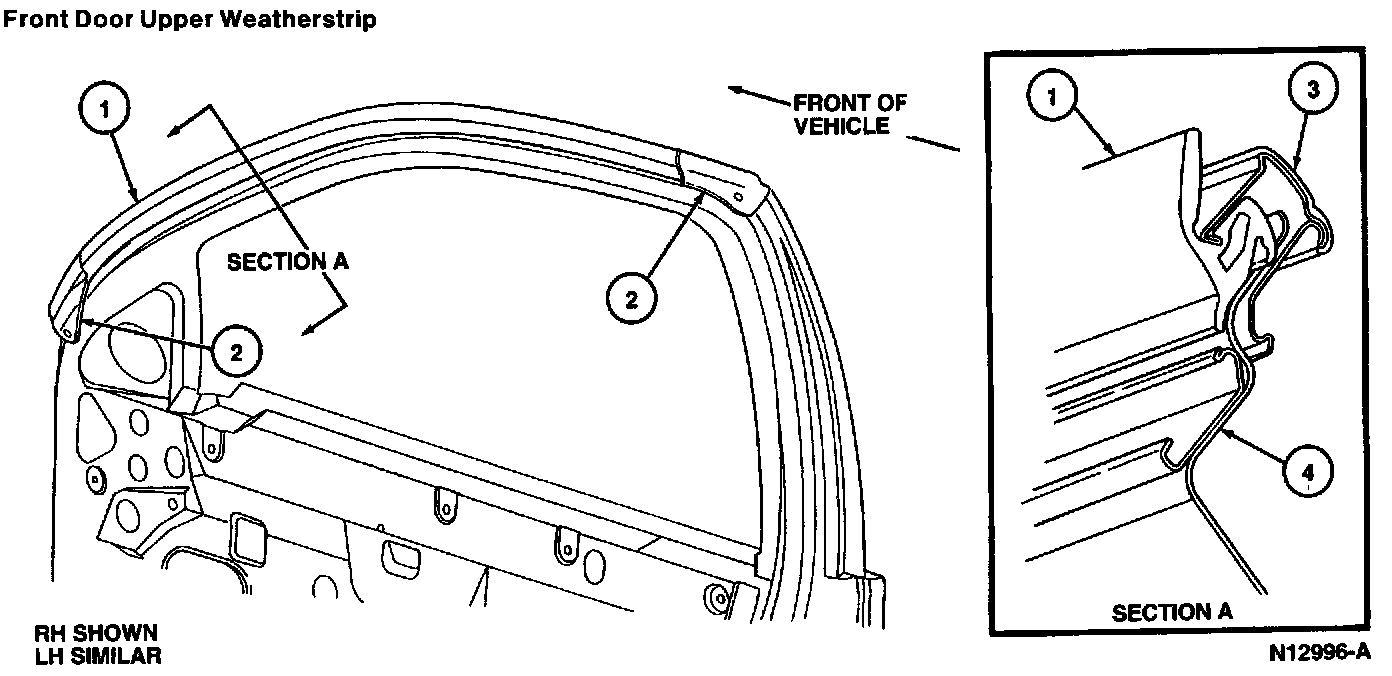

Front-Upper Door Weatherstrip
>>
Removal
Removal
1.
Remove pushpin from each end of upper
front door weatherstrip
.
2.
Pull upper
front door weatherstrip
from channel.
