Removal

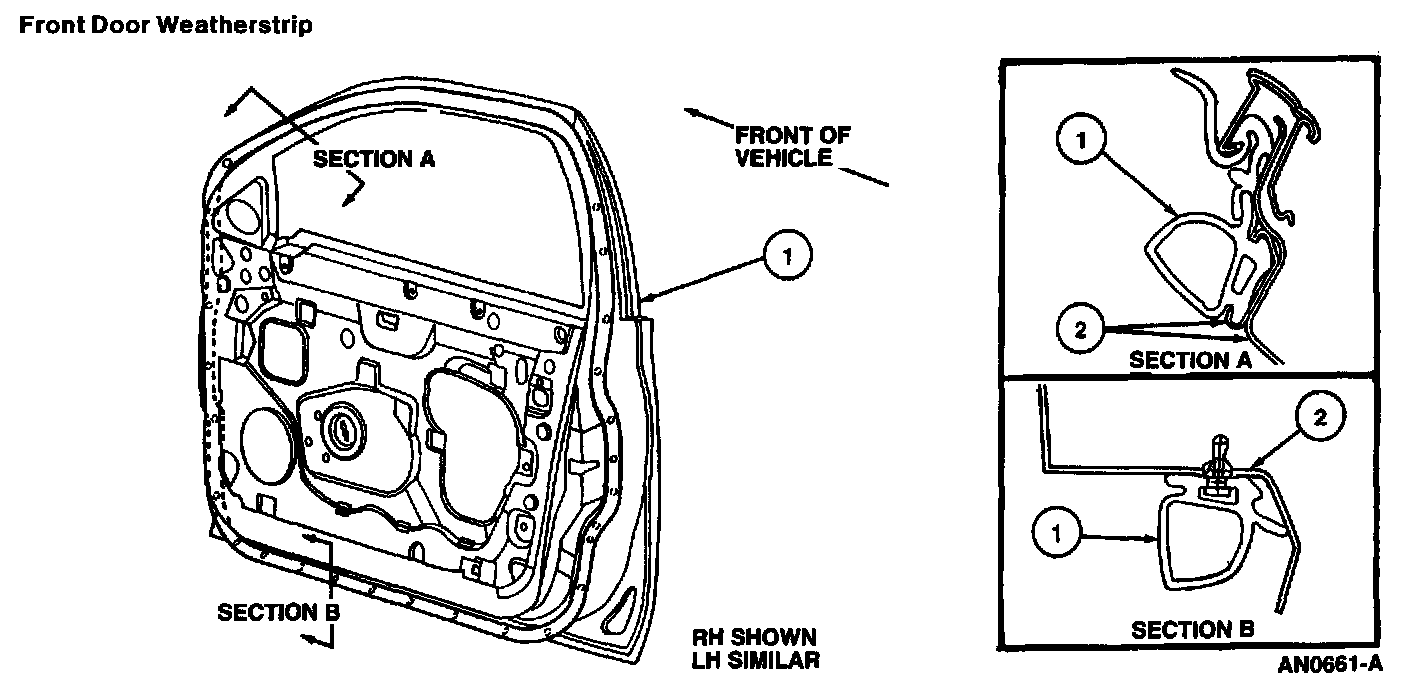

1. Carefully lift front door weatherstrip up out of its channel in the top of door while looking for push pins that retain weatherstrip to door.

2. Remove 28 pushpins using an appropriate tool to pry pins from door.

3. Remove front door weatherstrip.
