Installation

1. Trim one end of the new roof sliding panel seal square. Trim other end of roof sliding panel seal with minimal 1 mm (0.039 inch) interference with opposite square end.

2. NOTE: Locate bull joint of roof sliding panel seal on passenger side of roof sliding outer glass panel first to make sure that bumper insert in roof sliding panel seal is positioned along front of roof sliding outer glass panel.

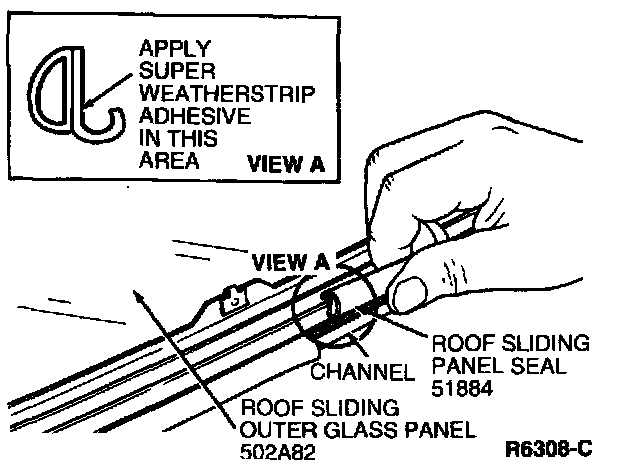

Apply Weatherstrip Adhesive E8AZ-19552-A or equivalent meeting Ford specification ESB-M2G14-A to new roof sliding panel seal and press roof sliding panel seal onto roof sliding outer glass panel.

3. Install roof sliding outer glass panel as described.

4. Adjust roof sliding outer glass panel as described.
