Installation

1. Slide roof sliding panel rail and roof glass panel into vehicle, taking care not to damage roof finish.
2. Install two screws retaining roof sliding panel rail to roof panel. Tighten to 4-6 N.m (36-53 lb-in).
3. Check sliding roof panel motor for synchronization. If not synchronized, adjust as described.
4. Install sliding roof panel motor and retaining screws. Tighten to 4-6 N.m (36-53 lb-in). Connect electrical connectors.

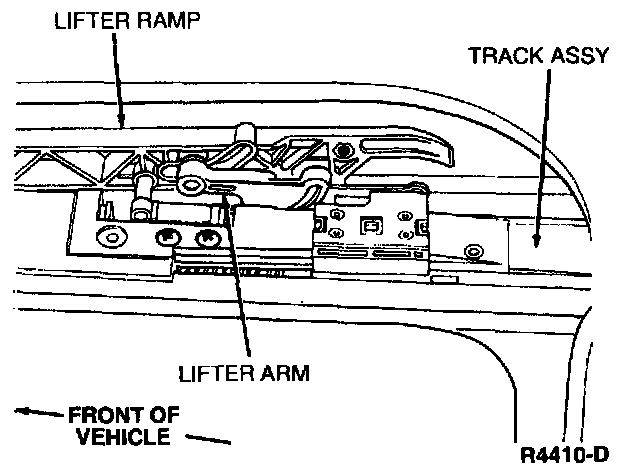

5. Make sure lifter arm and guidance ramp are aligned as shown.
6. Open roof sliding outer glass panel and roof sliding panel headlining fully.
7. Install eight screws.
8. Adjust roof sliding outer glass panel as described.
9. Install four pivot bracket retaining screws after roof sliding outer glass panel is adjusted.




10. Install access cover.
