Lifter Arms

REMOVAL
1. Remove roof sliding outer glass panel.

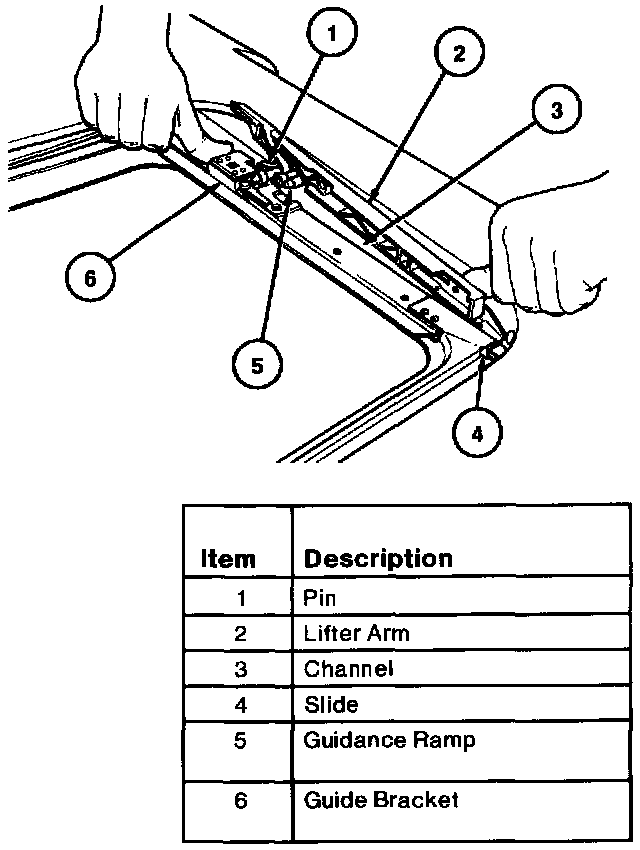

2. Using the roof sliding panel switch, move guide bracket rearward until lifter pin is at the top of curved slot in lifter arm.
3. Pull lifter arm off guidance ramp retaining pin. Slide out of roof panel.


INSTALLATION
1. To install, reverse Removal procedure.







2. Check sliding roof panel motor for synchronization and adjust. Install sliding roof panel motor and roof sliding outer glass panel.
