Installation

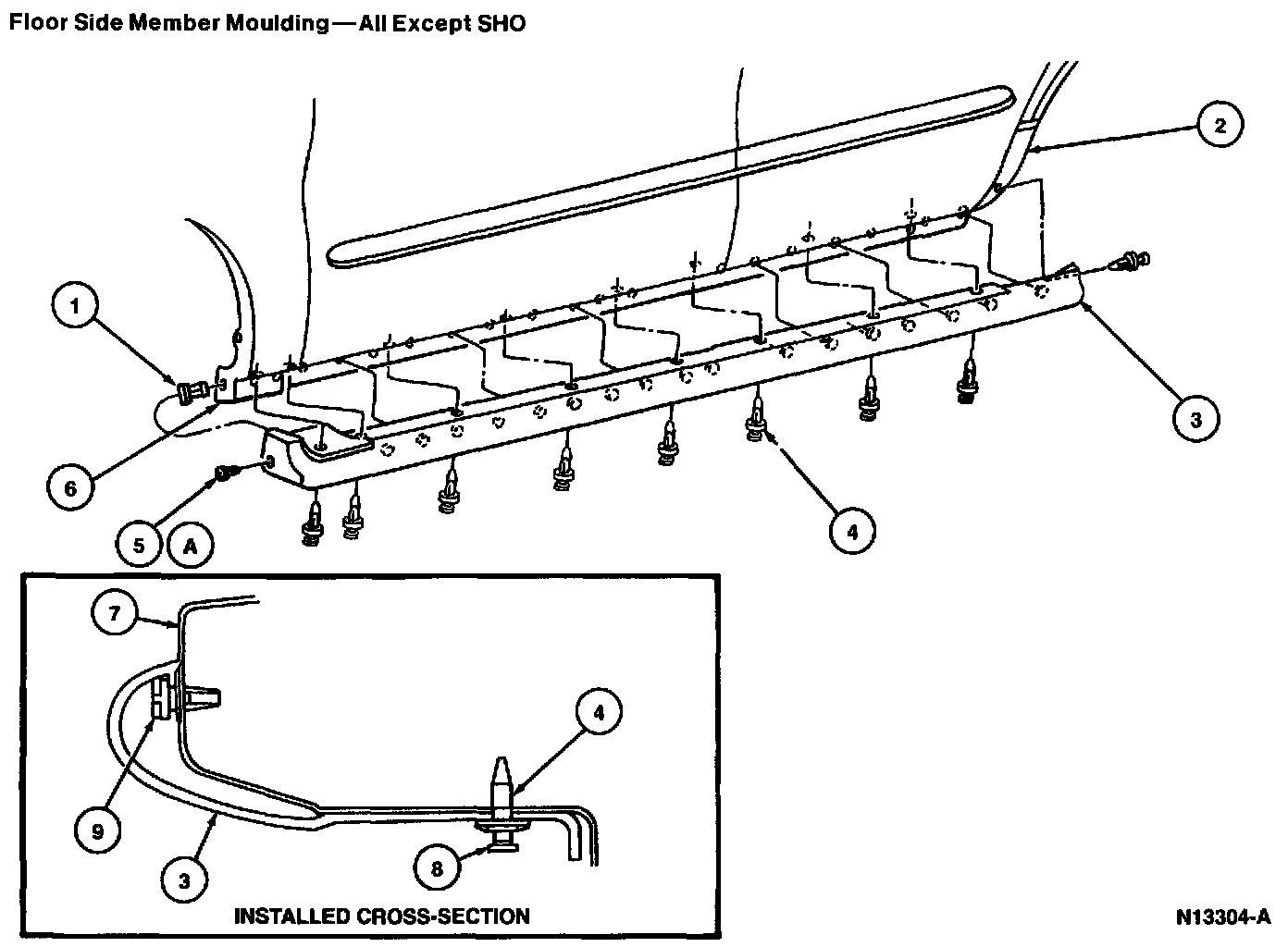

1. Install moulding to vehicle by aligning 17 upper arrowhead retainers to 17 holes in sheet metal and engage retainers.

2. To make sure of full engagement of the upper arrowhead retainers, apply hand pressure between every two retainers.

3. Install pushpins to lower inner edge of rocket panel.

4. Install screw retaining moulding to front wheel well and tighten to 0.9-1.3 N.m (8-11 lb-in).
