Home >> Mercury >> 1997 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> Sound Quality Pinpoint Tests >> L: One or More Speakers Have No Sound-All Modes

L: One or More Speakers Have No Sound-All Modes

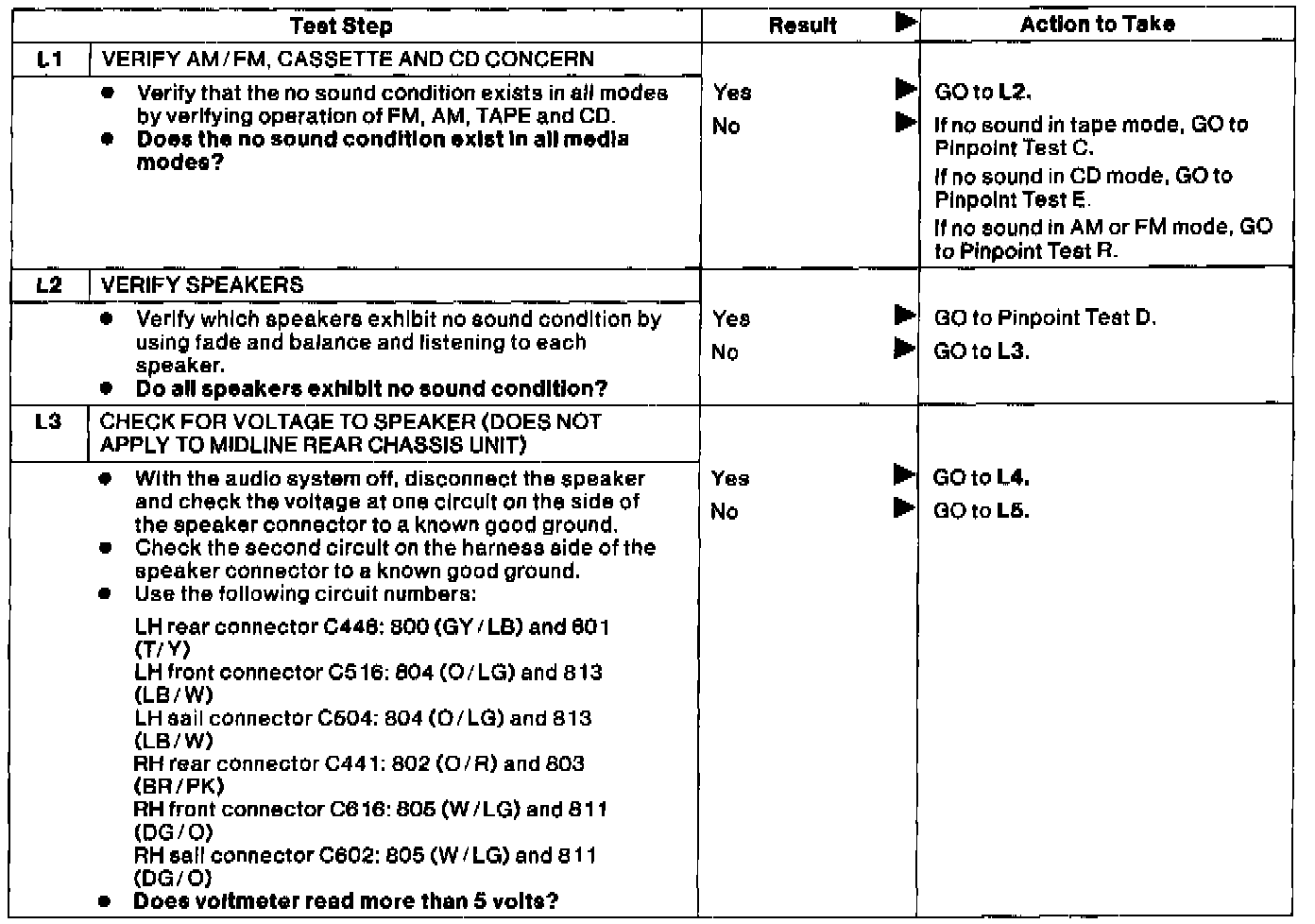

L1 - L3:

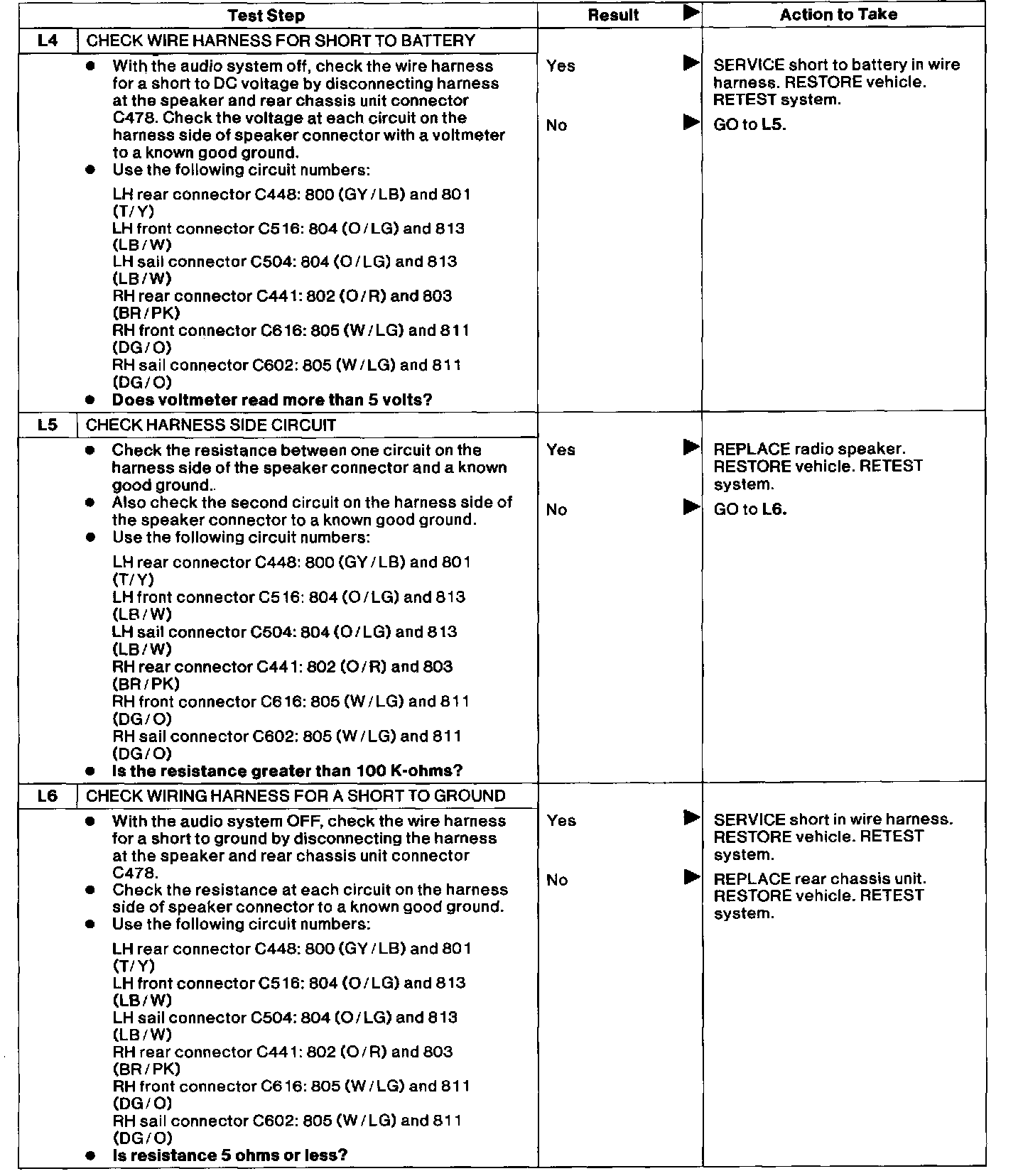

L4 - L6:
