Sedan

REMOVAL
1. Disconnect battery ground cable.
2. Open luggage compartment door and remove LH trim panel.
3. Disconnect mobile telephone power cable from mobile telephone transceiver.
4. Disconnect mobile telephone antenna cable from mobile telephone transceiver.

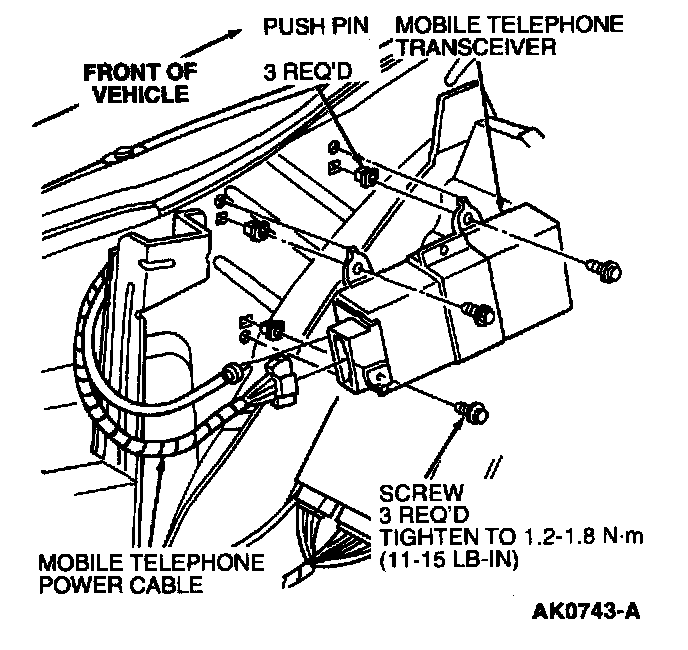

5. Remove three screws and mobile telephone transceiver from vehicle.

INSTALLATION
1. Install mobile telephone transceiver and secure with three retaining screws. Tighten screws to 1.2-1.8 Nm (11-15 Lb-In).
2. Connect antenna cable and mobile telephone power cable to mobile telephone transceiver.
3. Install LH trim panel.
4. Connect battery ground cable.
