Home >> Mercury >> 1997 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> B Code Charts >> B1453: Wiper Wash/Delay Switch Circuit Snort to Ground

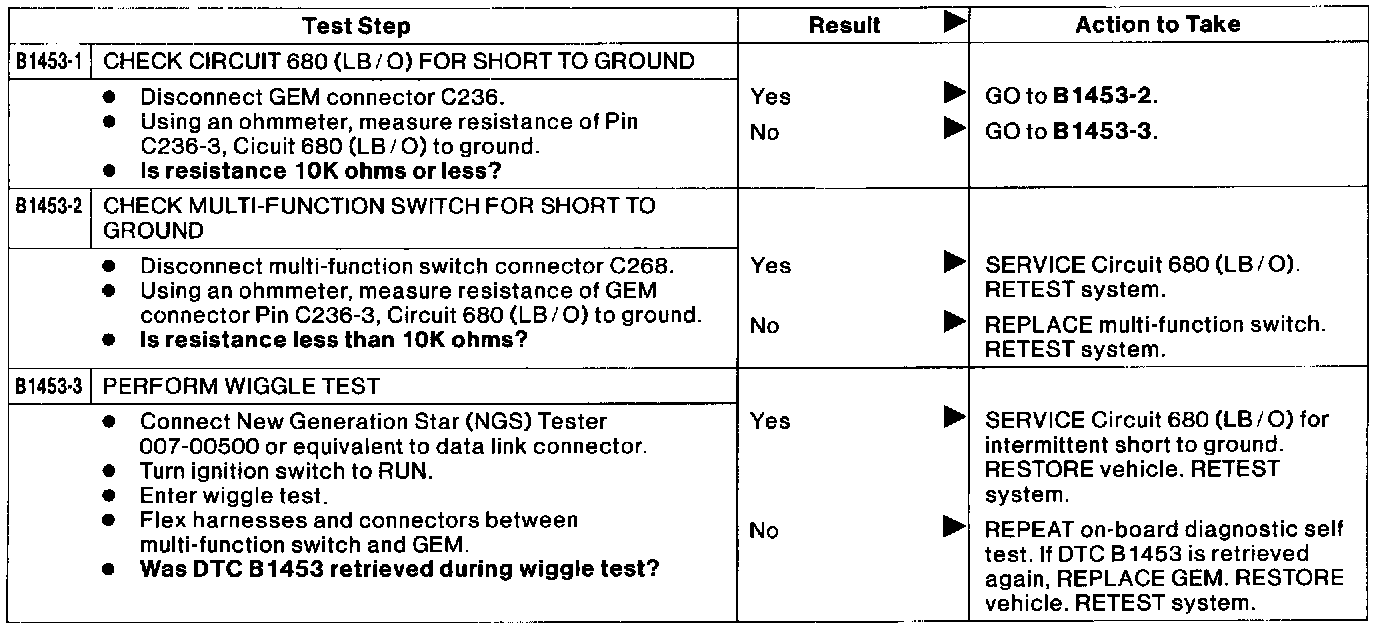

B1453: Wiper Wash/Delay Switch Circuit Snort to Ground
