Diagnostic Trouble Code Tests and Associated Procedures

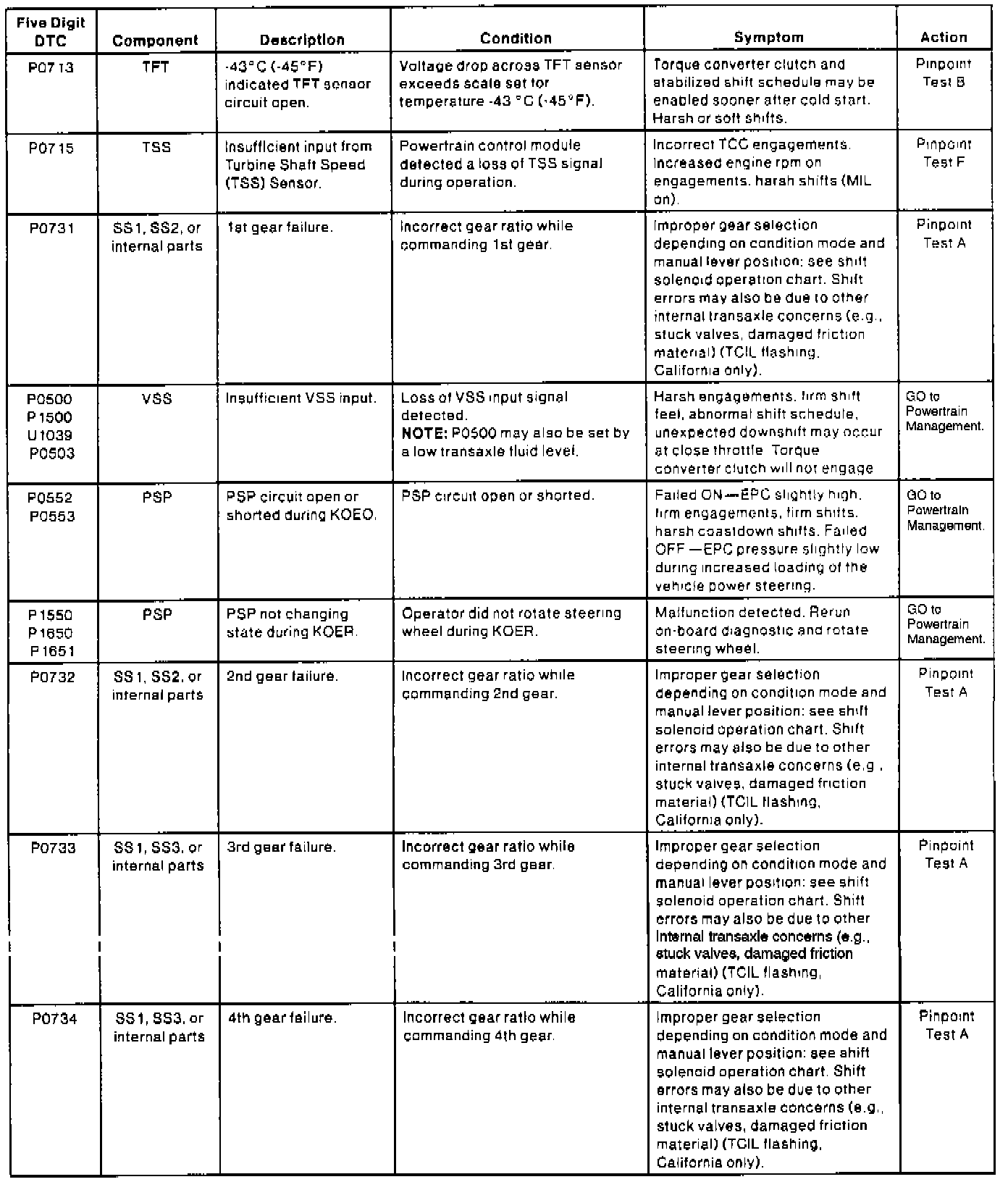

On-Board Diagnostic Trouble Code Description Chart, (Part 1 Of 5):

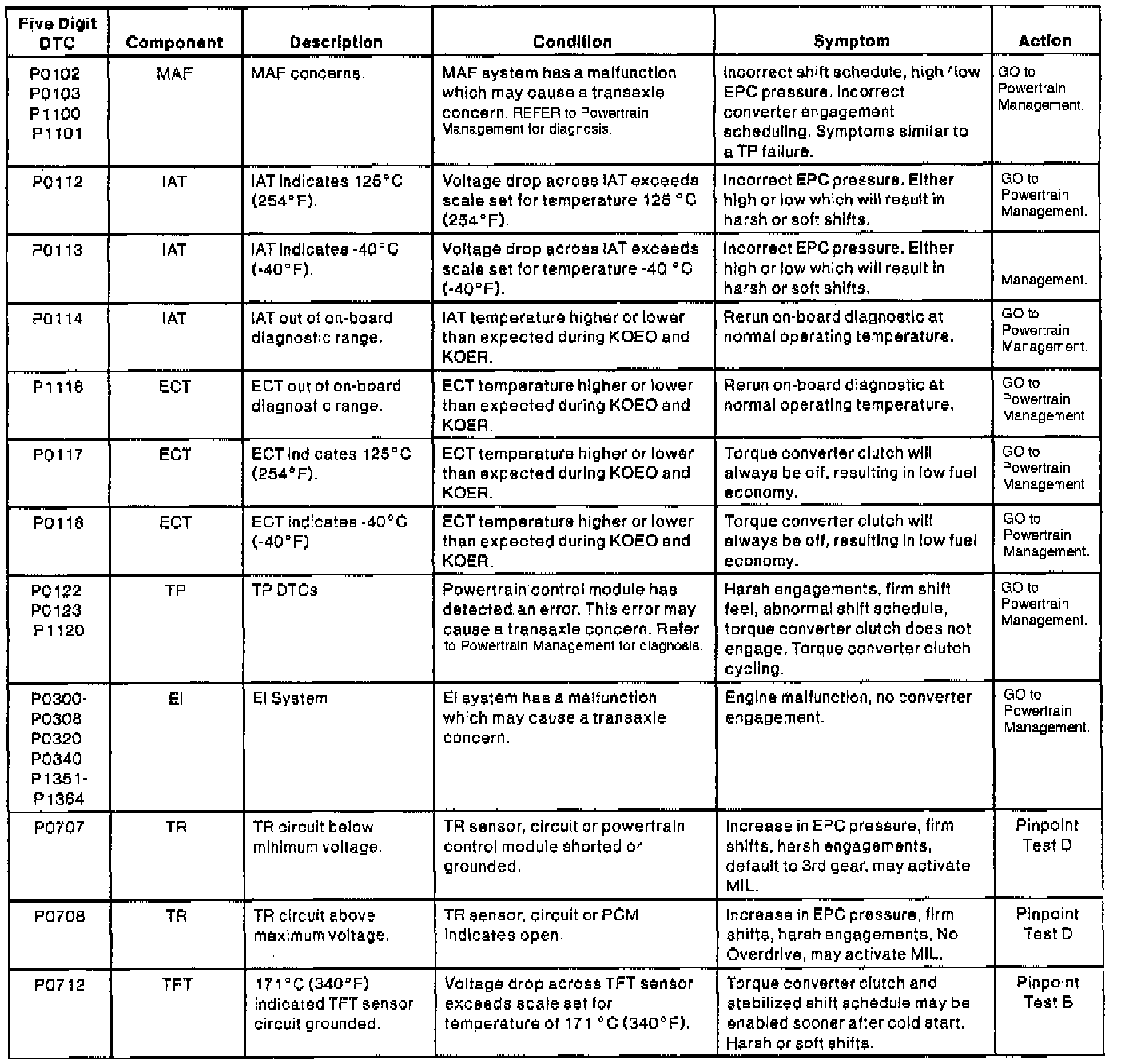

On-Board Diagnostic Trouble Code Description Chart, (Part 2 Of 5):

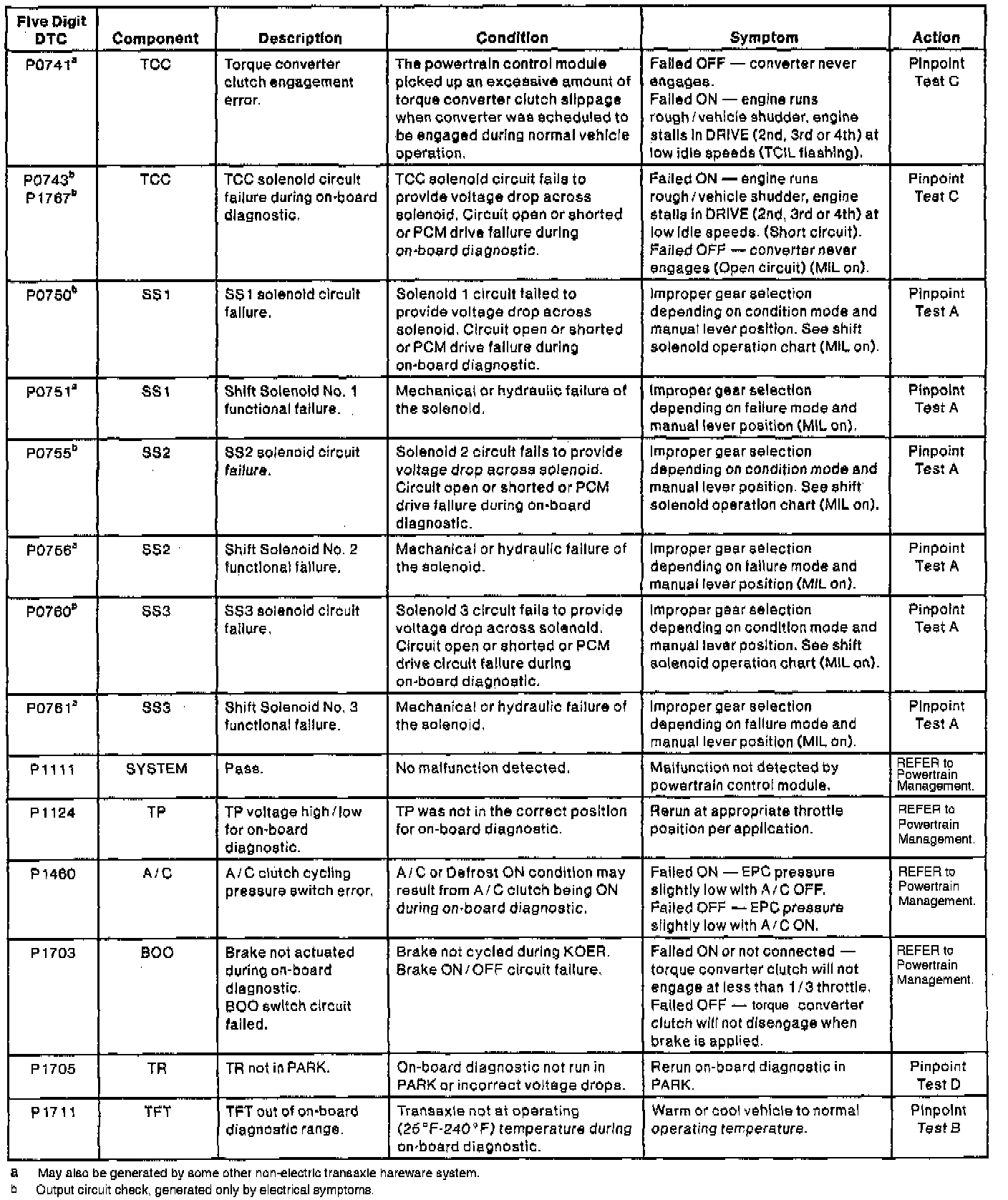

On-Board Diagnostic Trouble Code Description Chart, (Part 3 Of 5):



On-Board Diagnostic Trouble Code Description Chart, (Part 4 Of 5):

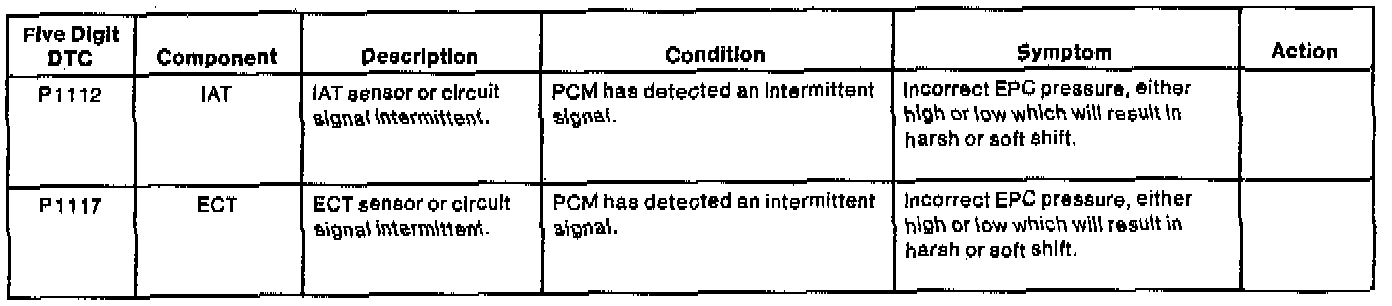

On-Board Diagnostic Trouble Code Description Chart, (Part 5 Of 5):
