Removal and Installation

REMOVAL

NOTE: The power steering pump is serviced as an assembly. If any service is required the entire power steering pump assembly must be replaced.

1. Make note of radio presets and disconnect battery ground cable.
2. Drain and remove radiator coolant recovery reservoir.
3. Remove drive belt.

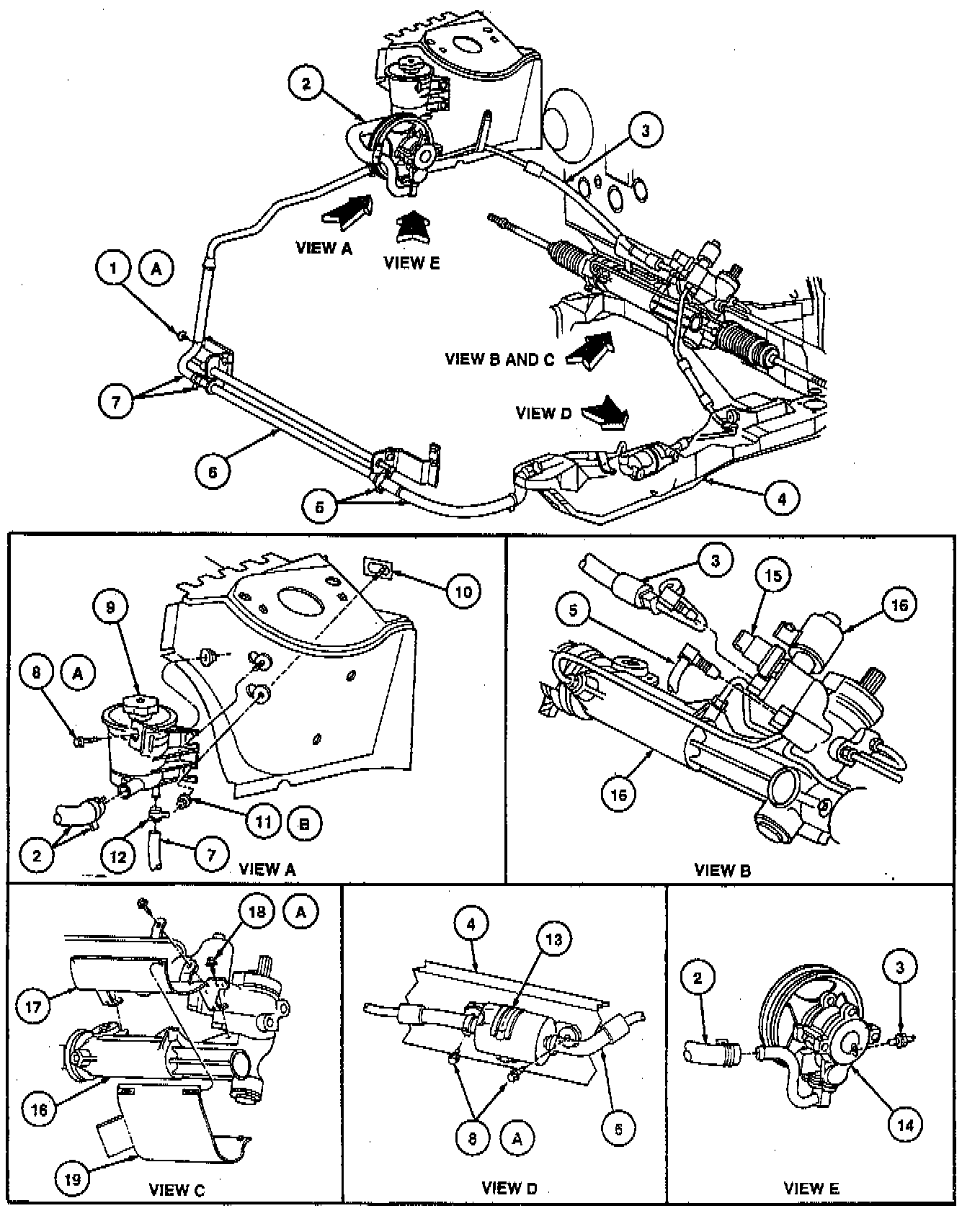

Part 1 Of 2:

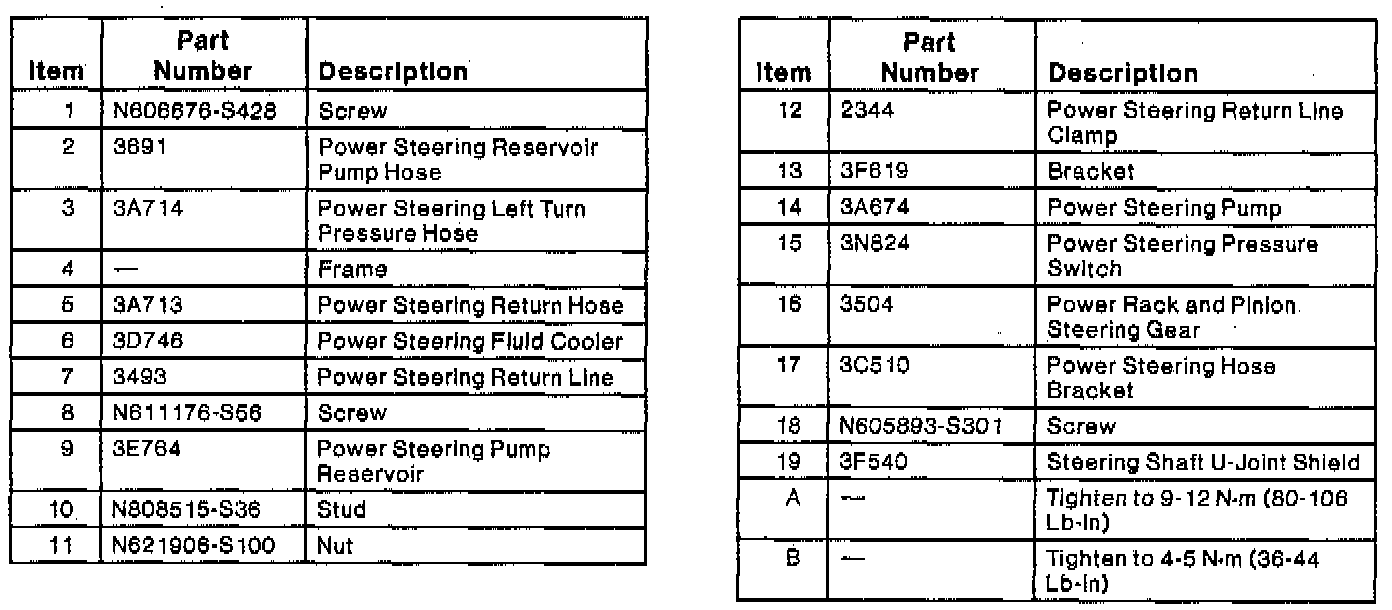

Part 2 Of 2:

4. Remove power steering reservoir pump hose from between power steering pump and power steering pump reservoir. Drain fluid into a container.






5. Remove power steering pump pulley from power steering pump using Steering Pump Pulley Remover T69L-10300-B.
6. Disconnect power steering left turn pressure hose from power steering pump and drain the fluid into a container.
7. Remove three power steering pump retaining bolts and remove power steering pump.

INSTALLATION
1. Follow removal procedure in reverse order and reset radio presets.
2. Fill power steering pump with Motorcraft MERCON Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent meeting Ford MERCON specification and check operation.
