Multi-Function Switch Continuity Test

Part 1 Of 2:

Part 2 Of 2:

Use a continuity tester and an ohmmeter, such as Rotunda 88 Digital Multimeter 105-R0053 or equivalent.

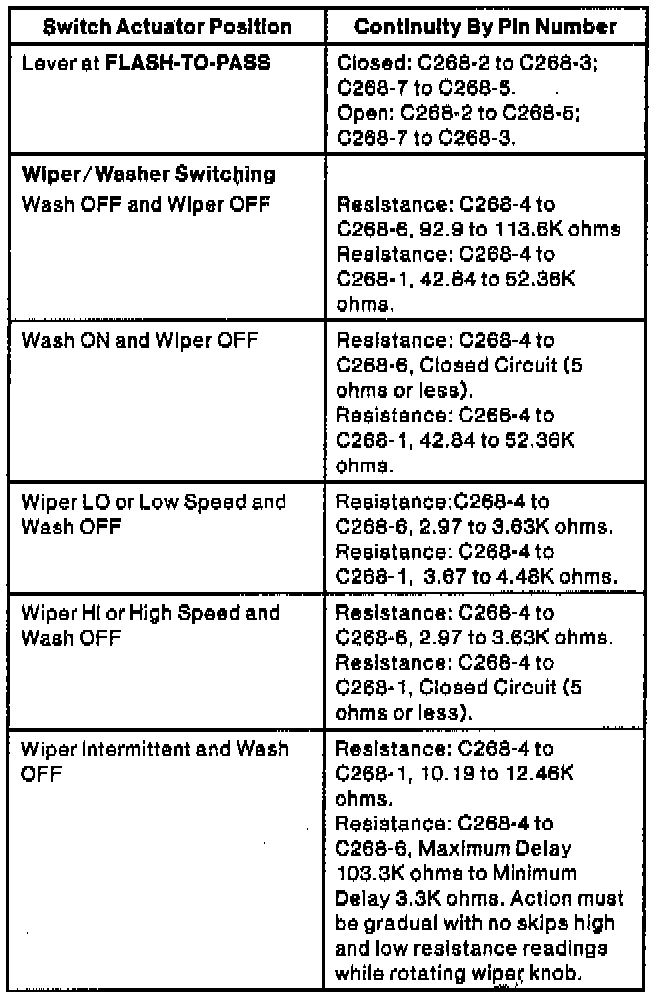

Refer to the symptom chart, the Multi-Function Switch connector illustration and Continuity Test Chart to resolve concerns with the multi-function switch.
