Pinout Values and Diagnostic Parameters

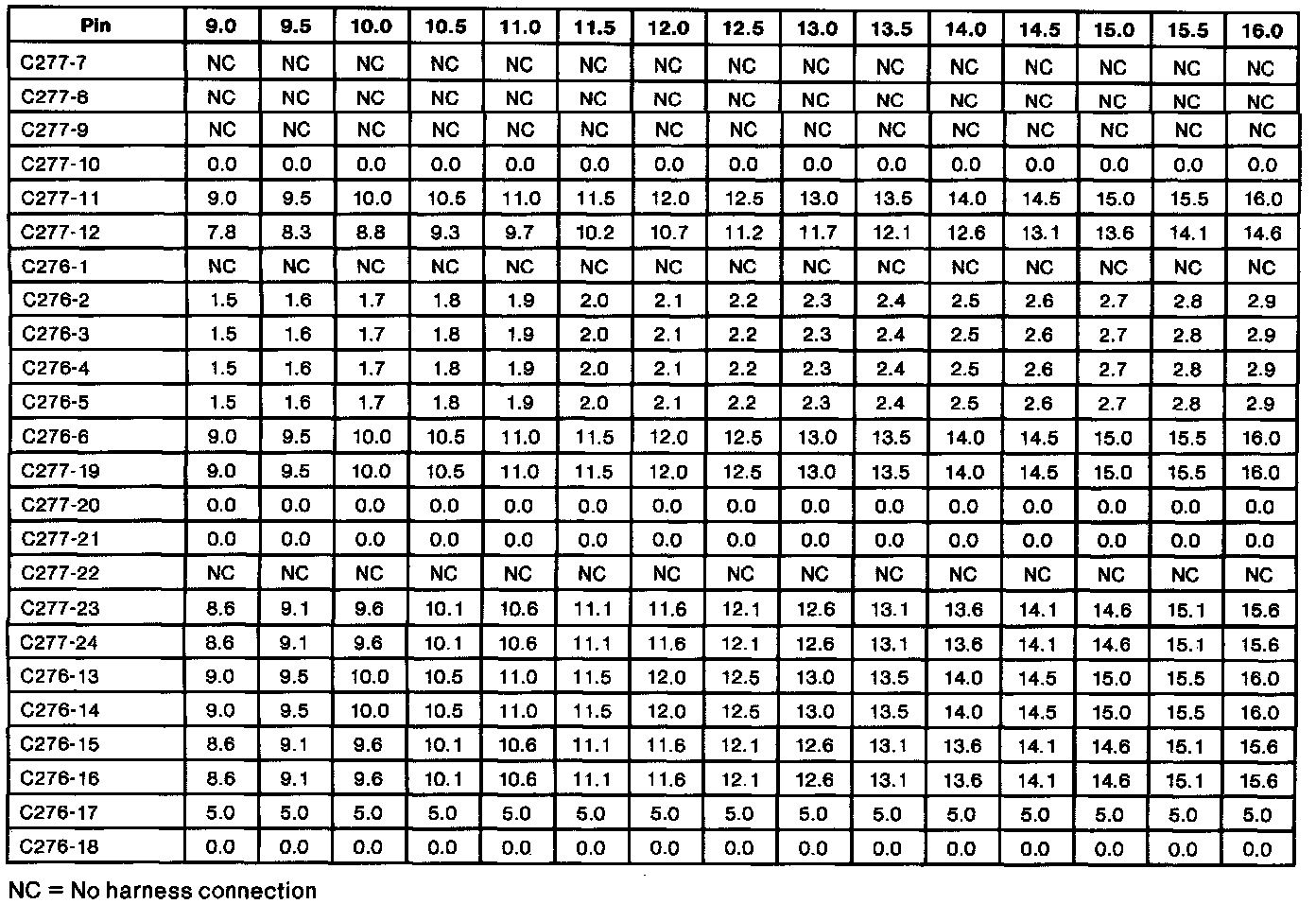

Air Bag Diagnostic Monitor Typical Pin Voltages With System Connected and Engine Running.
