Component Locations

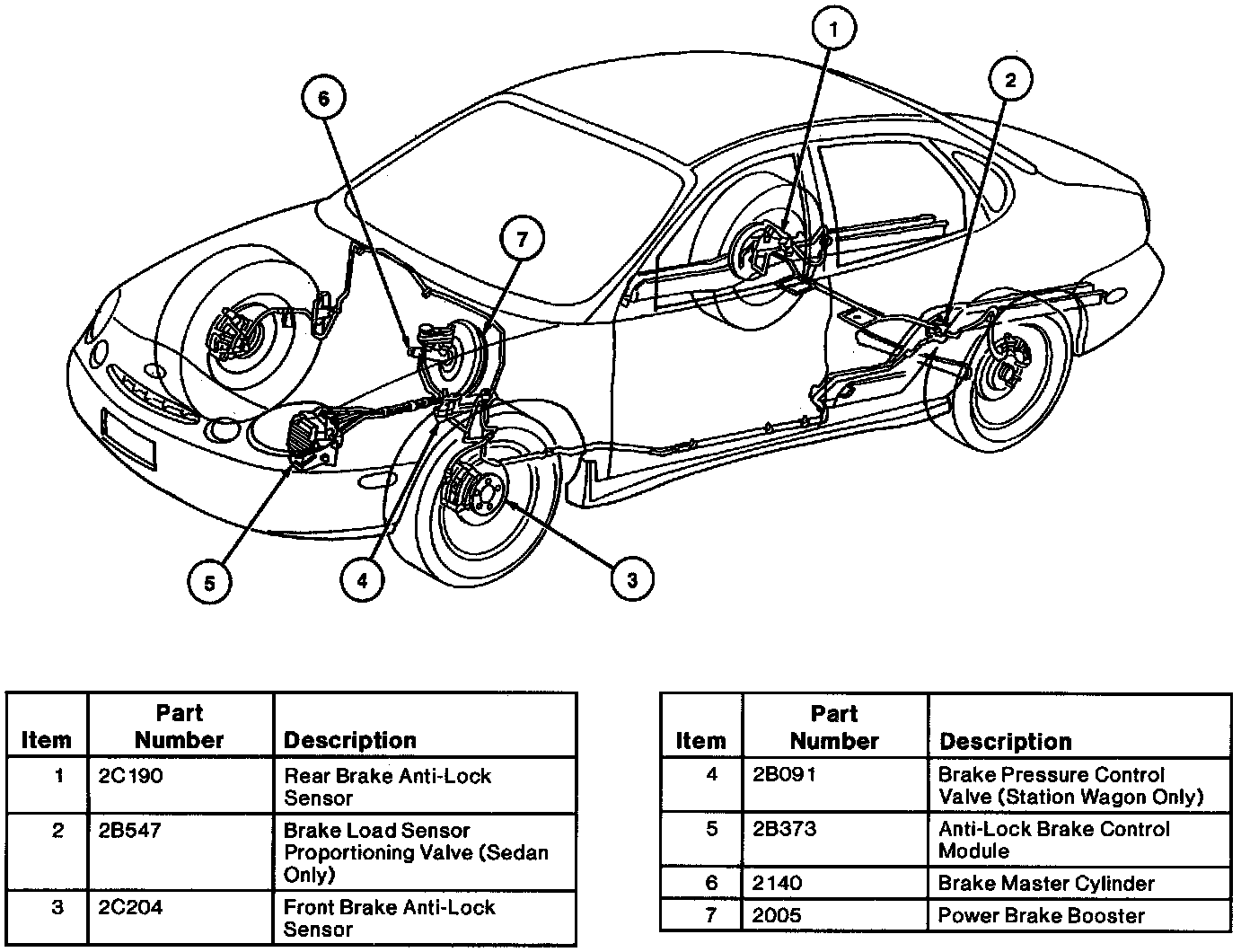

ABS Component Locations:



ABS HCU Mounting (Part 1 Of 2):



ABS HCU Mounting (Part 2 Of 2):
