PCM - Hard Start/Long Crank/Harsh 1-2 Shift
Article No.97-26-5
12/22/97
^ HARD START - LONG CRANK TIME AFTER
OVERNIGHT SOAK - 3.0L 4-VALVE VEHICLES
^ TRANSAXLE - AX4N - INTERMITTENT HARSH 1-2
SHIFT - 3.0L 4-VALVE VEHICLES
FORD:
1997 TAURUS
LINCOLN-MERCURY:
1997 SABLE
CALIBRATION:
7-14A-R10, 7-14S-R10
WARNING:
THIS MODIFICATION IS AUTHORIZED ONLY FOR THE LISTED ENGINE. PERFORMING THIS MODIFICATION ON OTHER ENGINE CALIBRATIONS IS UNAUTHORIZED AND COULD CREATE LIABILITY UNDER APPLICABLE FEDERAL OR LOCAL LAWS.
The calibrations listed are current revision level calibrations. Past revision level calibrations are also included in this TSB.
ISSUE:
A hard start/long crank time, intermittent harsh 1-2 shift and/or poor engine speed run up at certain start up temperatures may be evident on some vehicles after an overnight soak. This may be caused by the Powertrain Control Module (PCM) calibration not turning on certain injectors during crank mode.
ACTION:

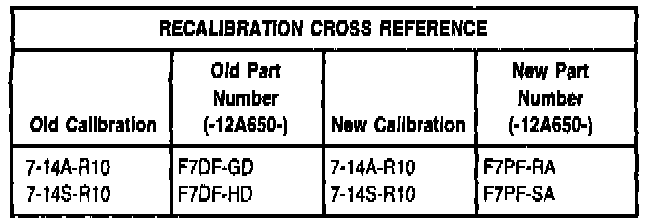

Reprogram the PCM. The new calibration has been revised to reduce the possibility of hard start/long crank times, intermittent harsh 1-2 shift and poor engine speed run up at certain start up temperatures. Perform normal diagnostics and refer to the following Recalibration Cross Reference Chart for the correct PCM calibration.
Obtain an Authorized Modification Decal (FPS 8262 - obtainable through DOES II, 25/pkg) and list the date, dealer number, and summary of modifications performed. Select a prominent place adjacent to the Vehicle Emission Control Information Decal suitable for installing the Authorized Modifications Decal. Clean the area, install the decal. and cover it with a clear plastic decal shield.
NOTE:
PCM REPLACEMENT IS NOT AUTHORIZED BY THIS TSB. REFER TO THE POWERTRAIN CONTROL/EMISSIONS DIAGNOSIS (PC/ED) SERVICE MANUAL FOR APPROPRIATE DIAGNOSTIC PROCEDURES IF PCM HARDWARE CONCERNS EXIST.
OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage
OPERATION DESCRIPTION TIME
972605A Reprogram Powertrain 0.2 Hr.
Control Module (PCM)
DEALER CODING
CONDITION
BASIC PART NO. CODE
RECAL 42
OASIS CODES: 501000, 602300, 603300
