Home >> Mercury >> 1997 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> A: No Communications With Generic Electronic Module (GEM)

A: No Communications With Generic Electronic Module (GEM)

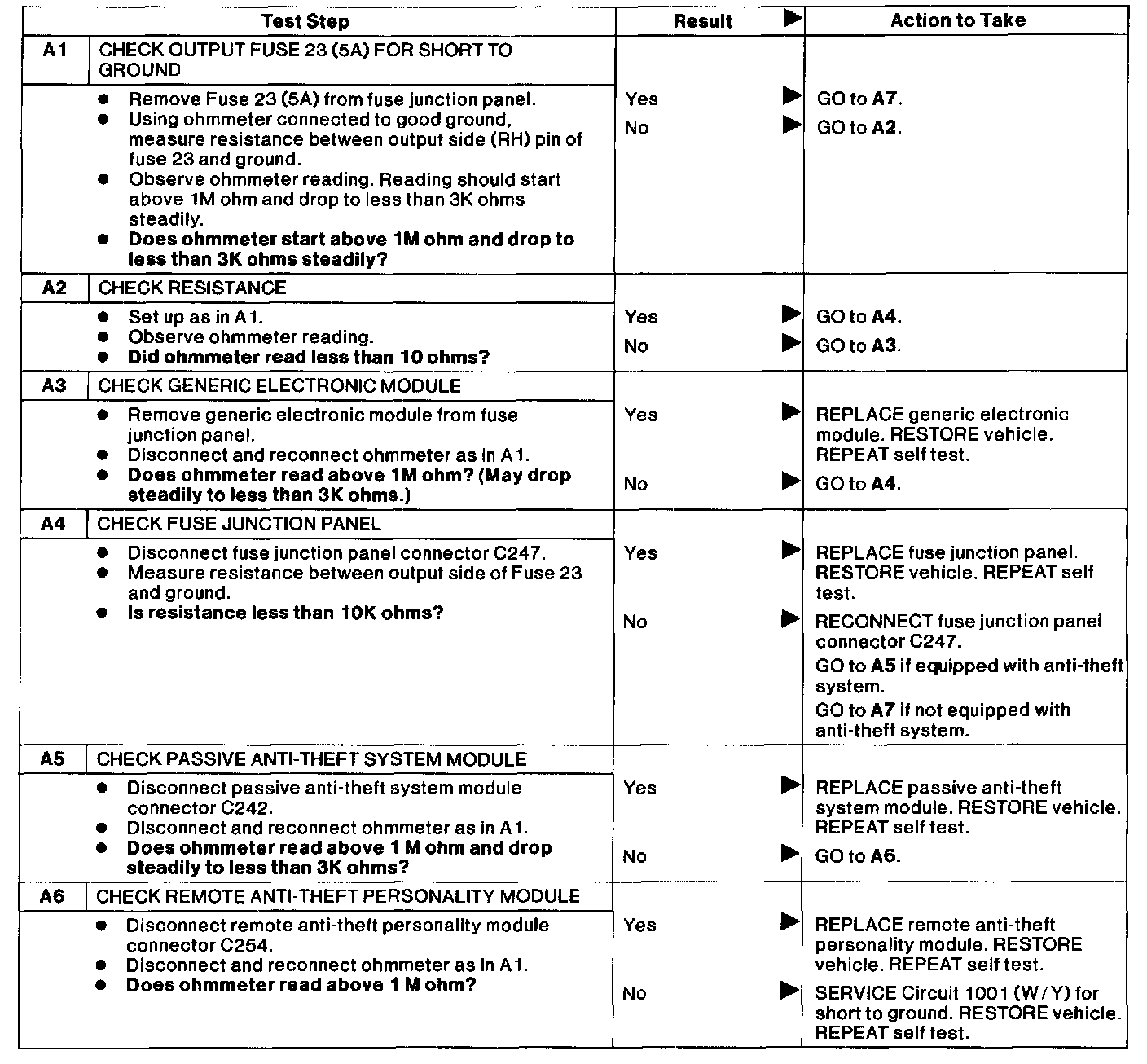

A1-A6:

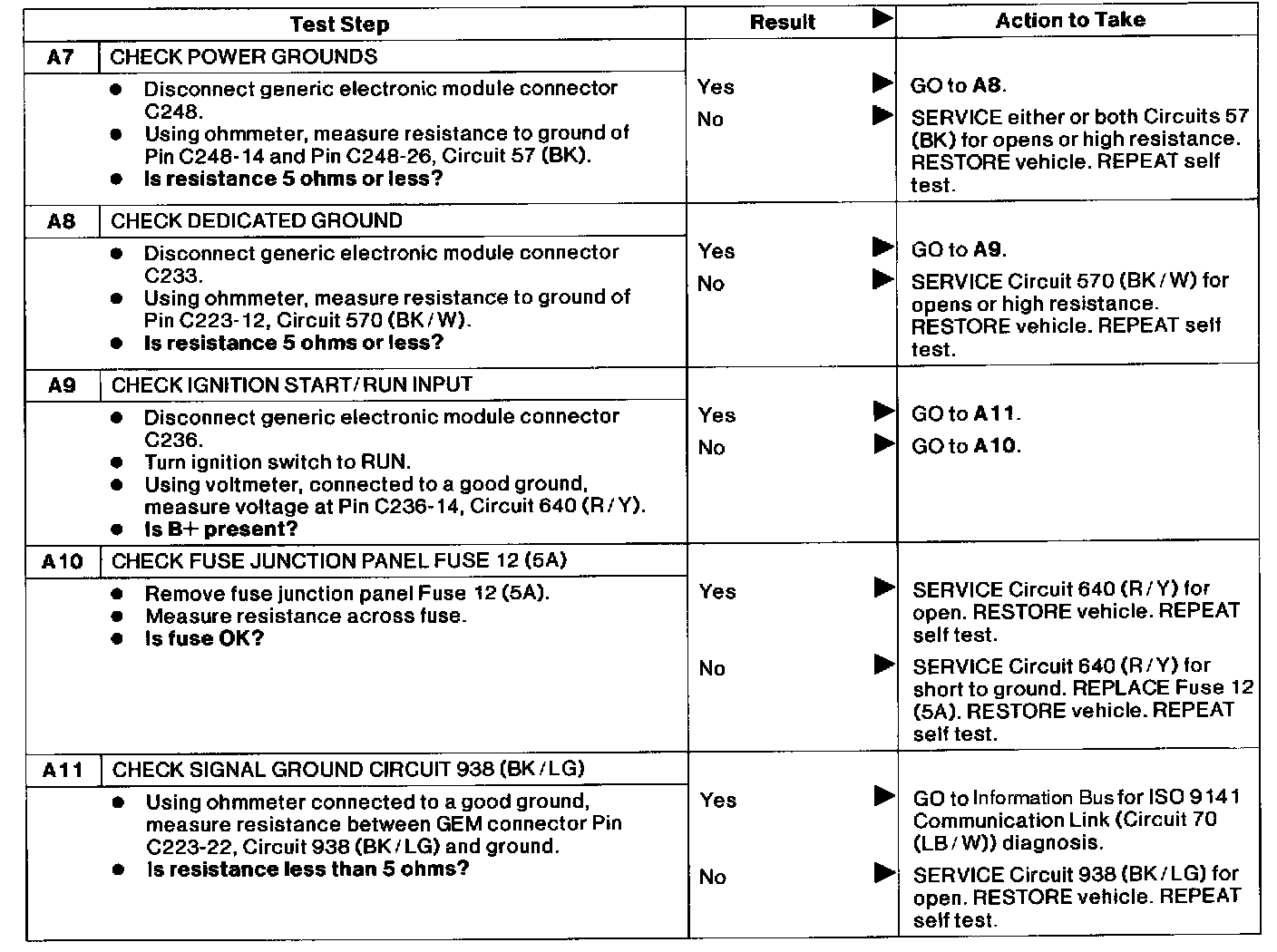

A7-A11:
