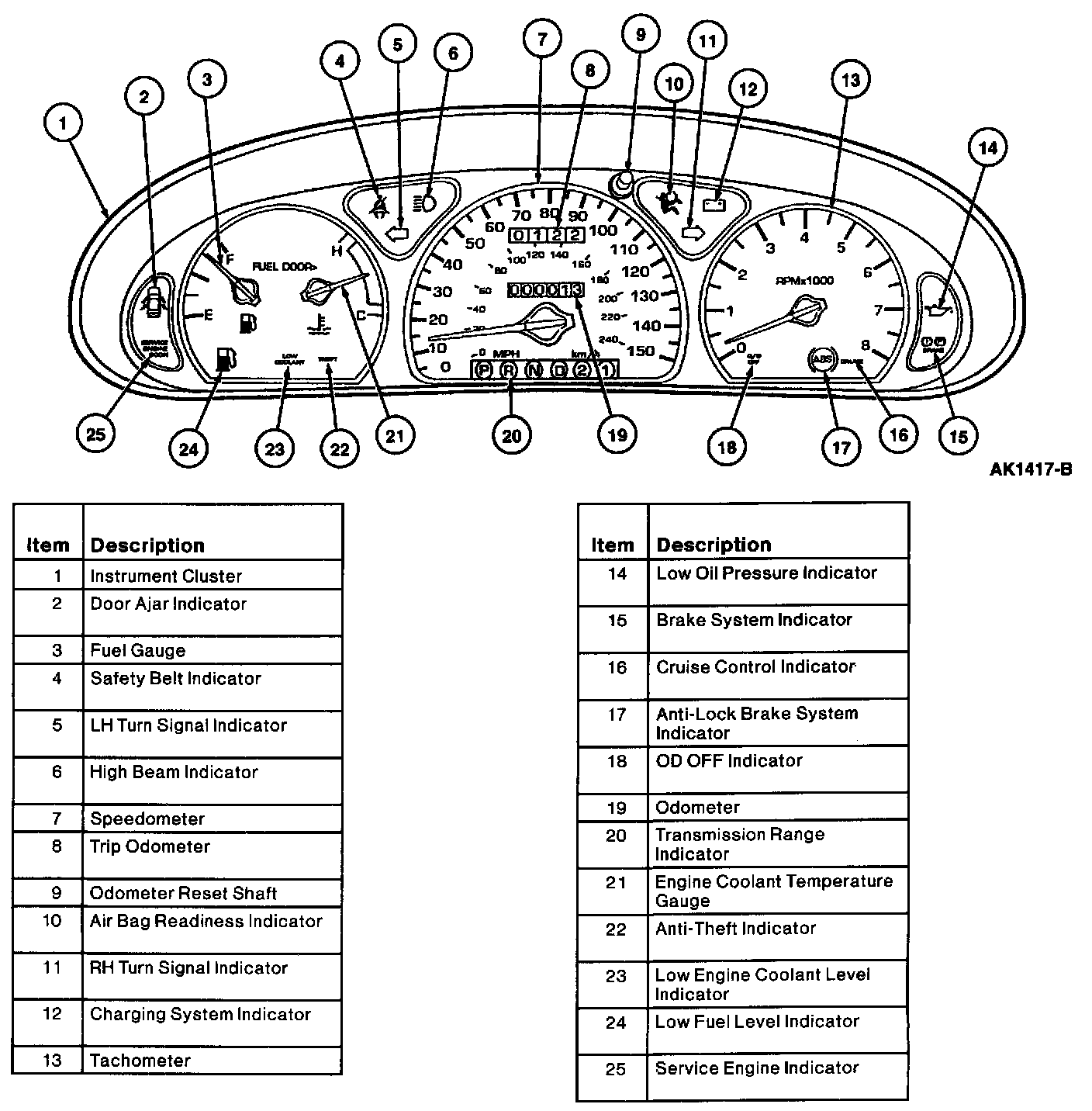

Instrument Cluster and Panel Lighting

The instrument cluster and panel lighting circuit provides illumination to:
- Instrument Cluster.
- Integrated Control Panel.
- Power Window Switches.
- Liftgate, Wiper/Washer Control Switch.
- Ash Receptacle Lamp.
- Transmission Range Indicator Illumination.
- The system is provided power by Circuit 1045 (DB/W).
- Circuit protection is provided by Fuse 2 (5 A).
- Ground is provided by Circuit 57 (BK).
