Home >> Mercury >> 1997 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Locations >> Internal Components

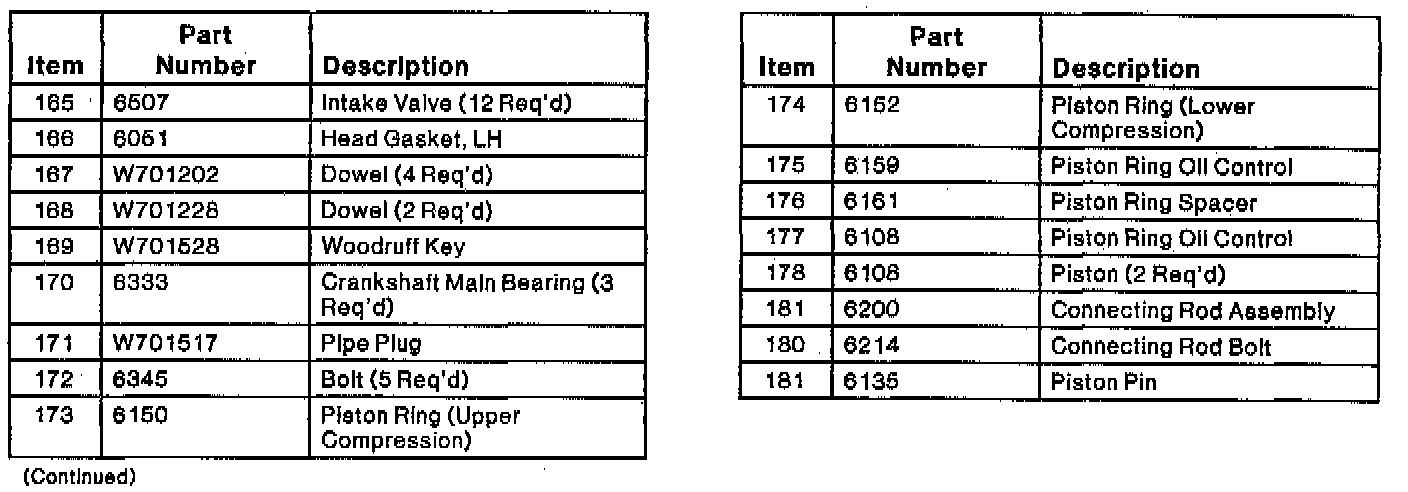

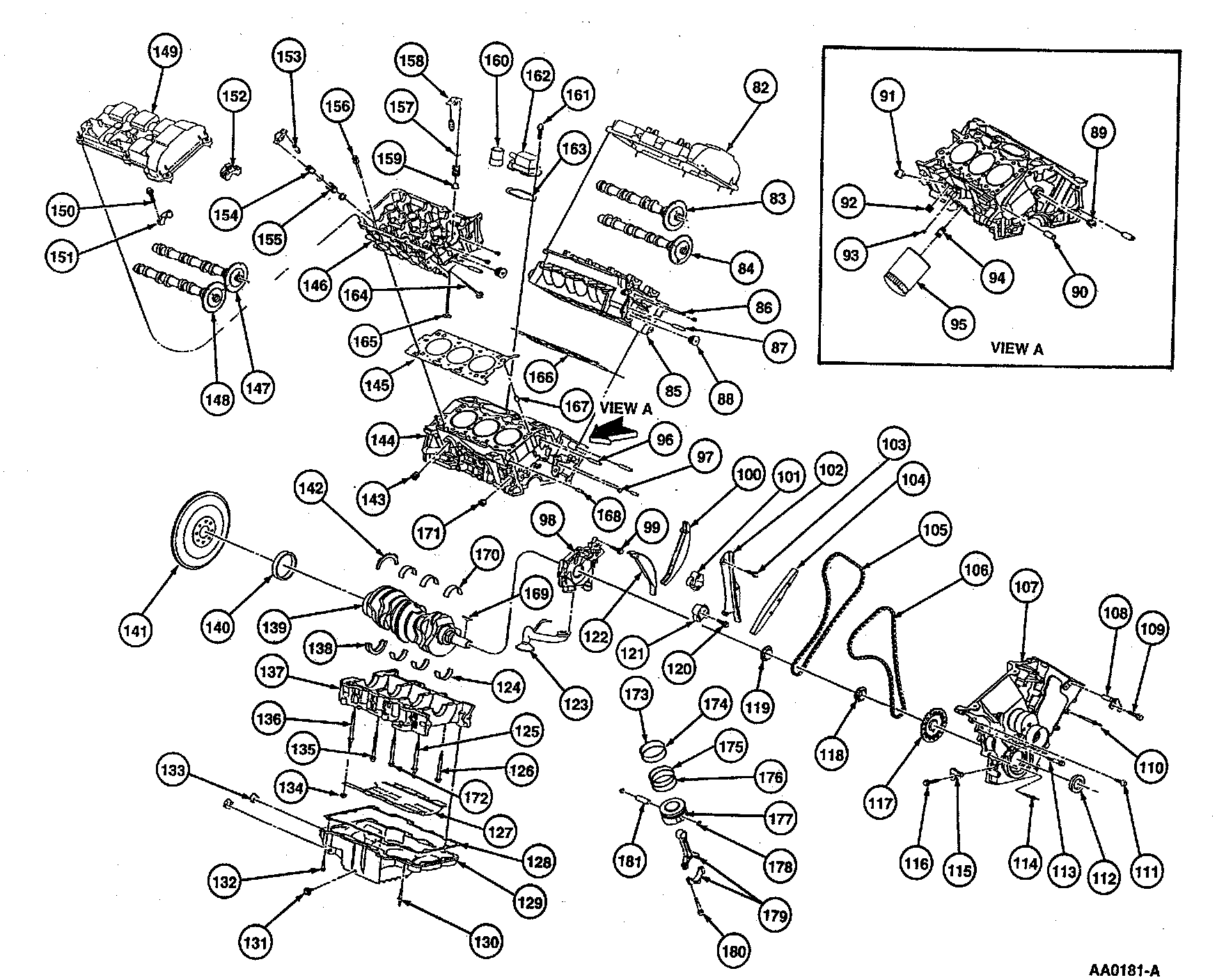

Internal Components

(Part 2 Of 5):



(Part 4 Of 5):



(Part 5 Of 5):
