Home >> Mercury >> 1997 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Locations >> External Components

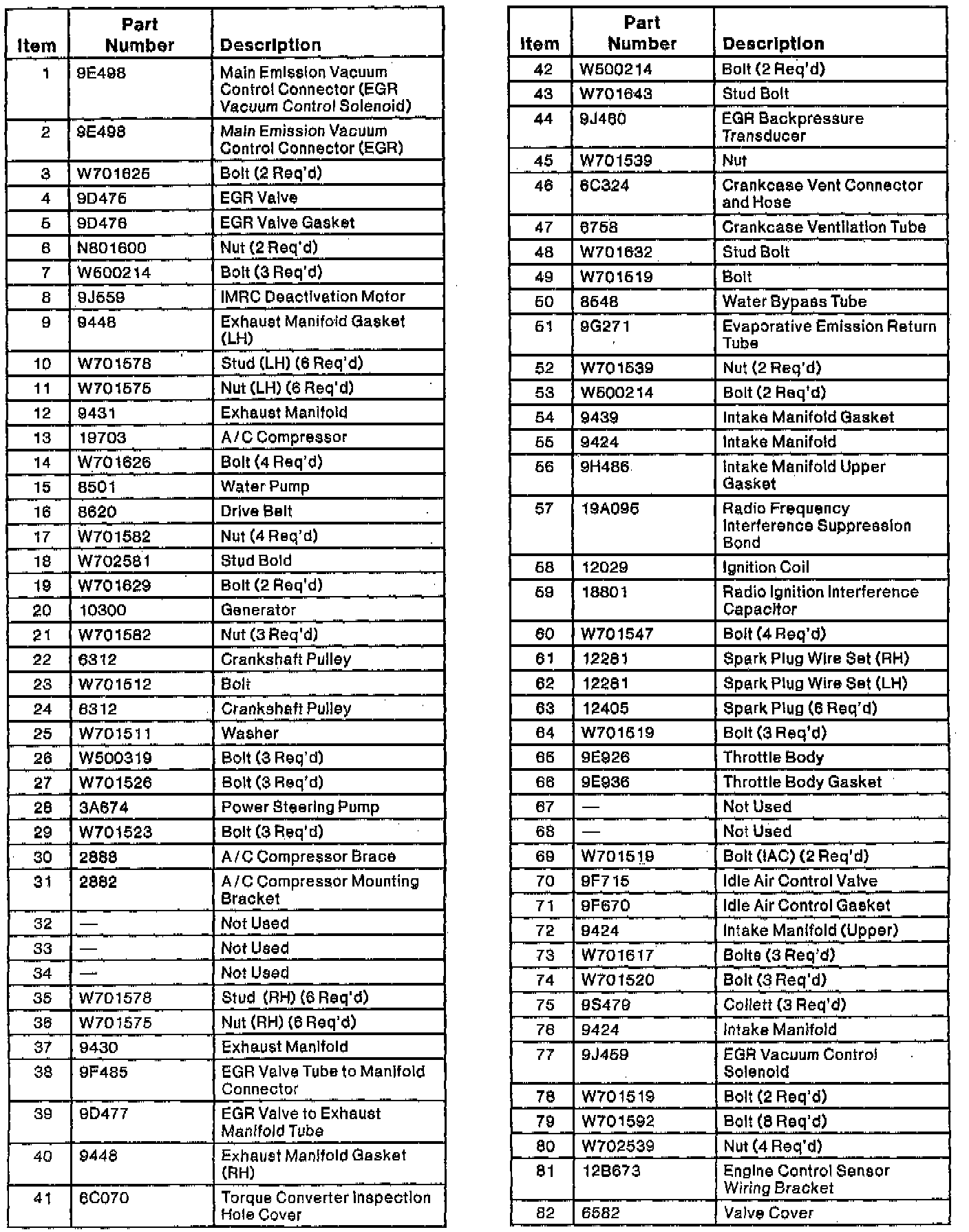

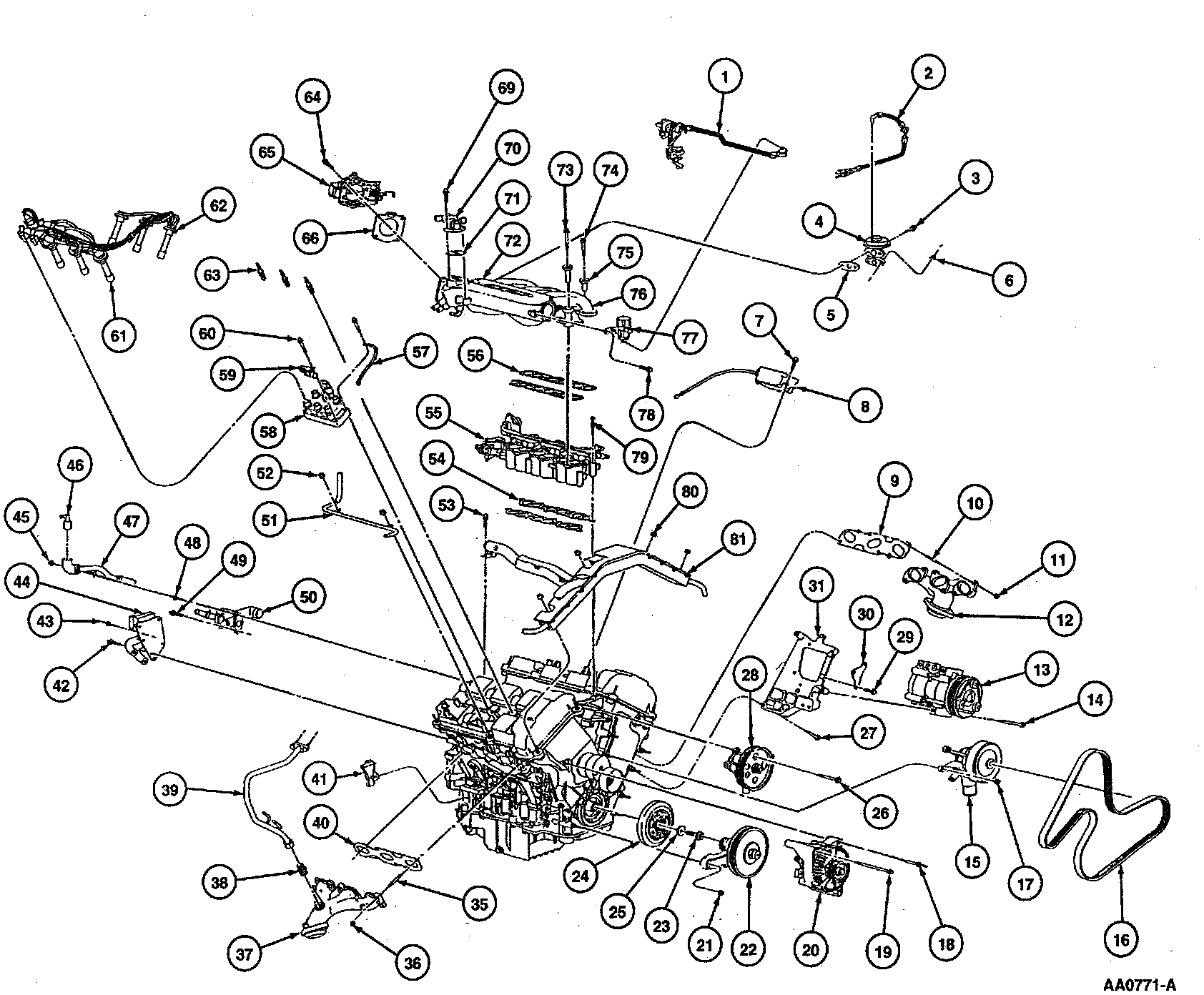

External Components

(Part 1 Of 5):



(Part 3 Of 5):
