Left Side

REMOVAL





1. Remove crankcase ventilation tube from valve cover and remove from engine.
2. Remove retaining nuts for engine control sensor wiring and remove engine control sensor wiring from valve cover retainer stud bolts and position out of way.
3. Remove ignition wires from spark plugs and valve cover.
4. Loosen valve cover retaining bolts and stud bolts following the removal sequence shown.
5. Carefully remove valve cover from cylinder head. Remove integral valve cover gasket from valve cover.

INSTALLATION
CAUTION: Cleaning Aluminum Surfaces
Do not use abrasive grinding discs to remove gasket material; use only plastic manual scrapers. Do not scratch or gouge aluminum sealing surfaces.

1. Clean valve cover sealing surfaces using a shop towel and Metal Surface Cleaner F4AZ-19A536-RA or equivalent meeting Ford specification WSE-M5B392-A.

NOTE: Tighten all fasteners within six minutes of applying sealer or sealer will begin to cure and may not seal properly.

2. Install new valve cover gasket onto valve cover.

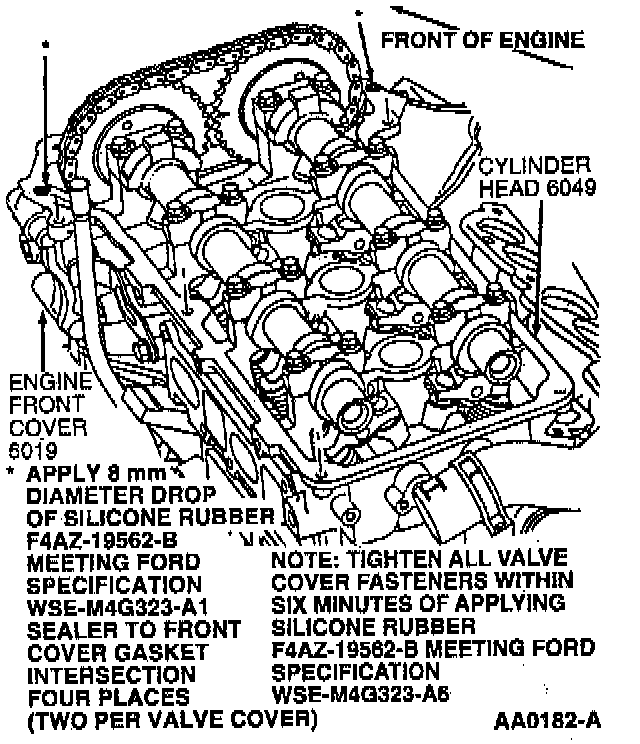

3. Apply 8 mm (0.31 inch) diameter bead of Black Silicone Rubber F4AZ-19562-B or equivalent sealant meeting Ford specification WSF-M4G323-A1 at two places on the valve cover sealing surfaces where the engine front cover and cylinder head contact.





3. Tighten valve cover bolts and stud bolts in sequence shown to 8-12 Nm (71-106 inch lbs.) within six minutes of applying sealer.
4. Follow removal procedure in reverse order to complete assembly.
