Home >> Mercury >> 1997 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Lamps and Indicators - Cooling System >> Coolant Level Indicator Lamp >> Testing and Inspection >> Pinpoint Tests >> Test A: No Communication With Generic Electronic Module

Test A: No Communication With Generic Electronic Module

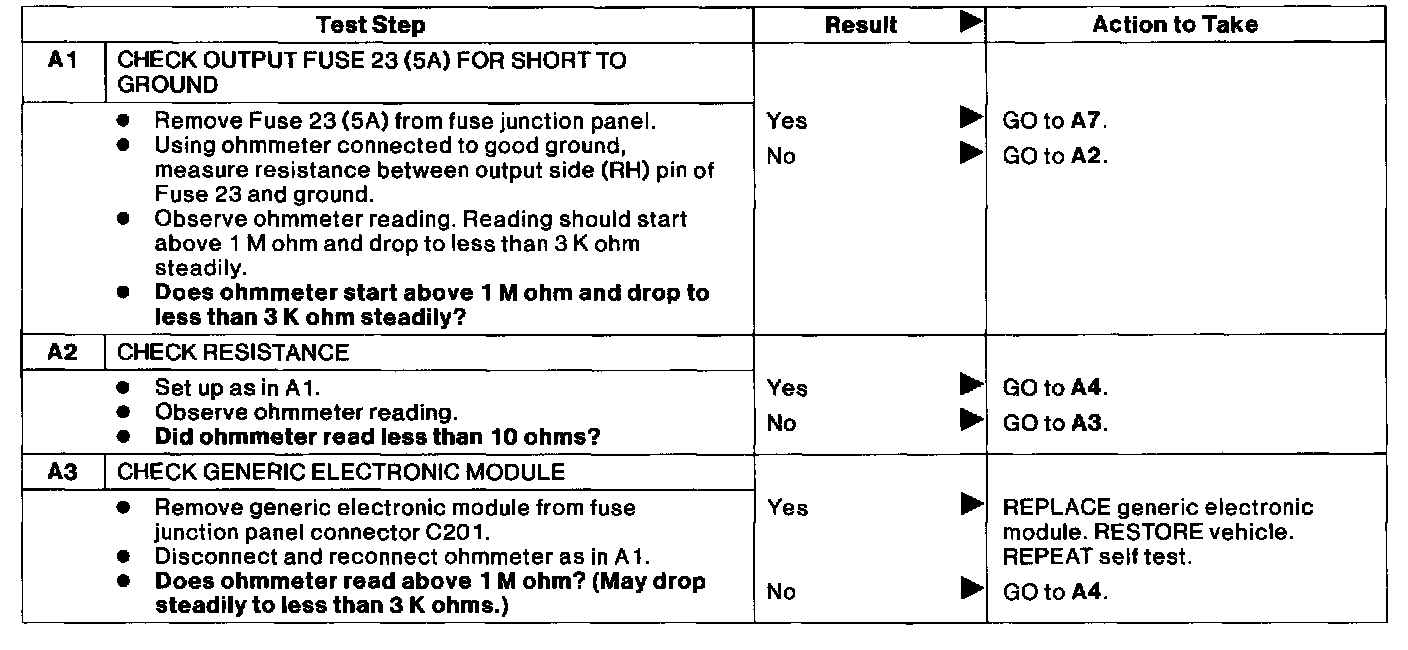

A1-A3:

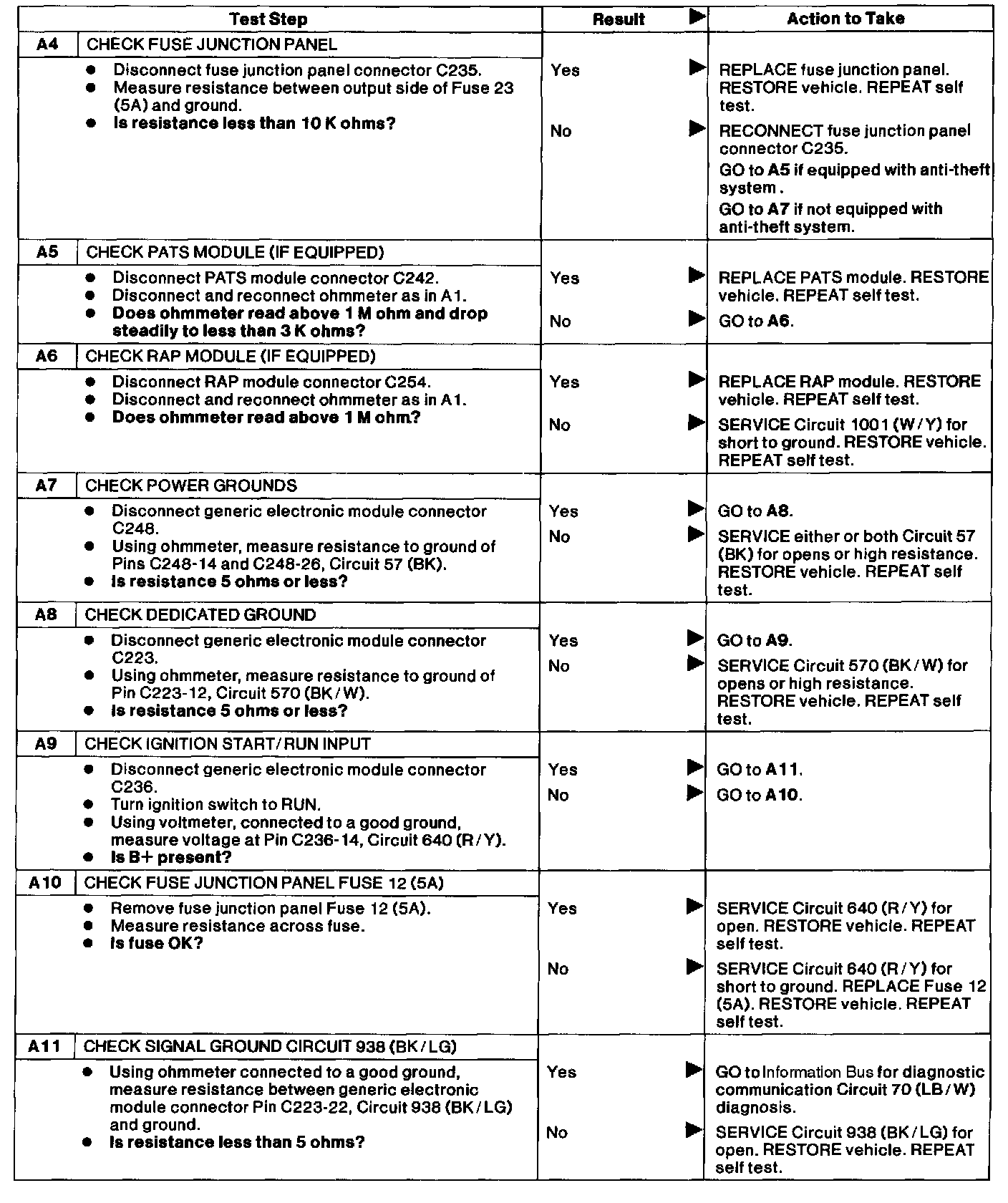

A4-A11:
