Removal

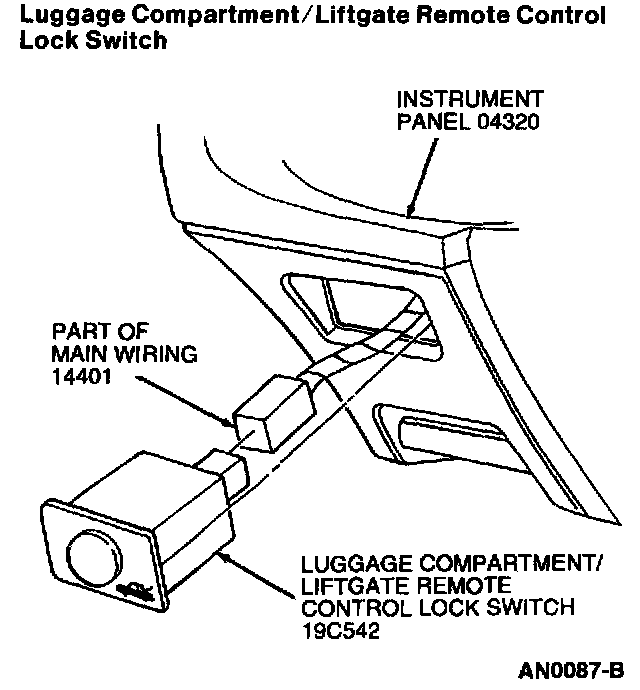

1. Using a flat-bladed screwdriver, carefully push in and release retaining tabs on both sides of luggage compartment/liftgate remote control lock switch, and position switch away from instrument panel.

2. Disconnect wiring harness connector and remove luggage compartment/liftgate remote control lock switch from vehicle.
