Inspection and Verification

1. Verify the customer's concern by operating the sliding electric roof panel to duplicate the condition.

2. Inspect to determine if one of the following mechanical or electrical concerns apply:

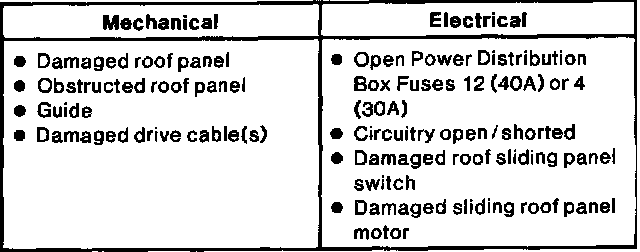

VISUAL INSPECTION CHART

3. If the inspection reveals obvious concern(s) that can be readily identified, service as required.

4. If the concern(s) remains after the inspection, determine the condition(s) and go to the Symptom Chart.
