Rear View Mirrors

1. Verify the customer's concern by operating the outside rear view mirrors to duplicate the condition.

2. Inspect the components of the power rear view mirror system to determine if any of the following mechanical or electrical conditions are present:

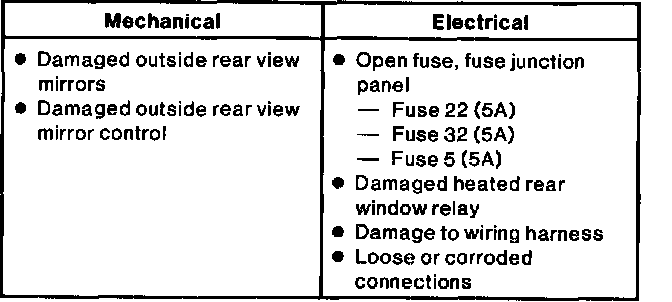

VISUAL INSPECTION CHART

3. Flex the harness and connectors at the outside rear view mirror control and outside rear view mirrors. Look for obvious signs of opens or shorts.

4. If the inspection reveals obvious concerns that can be readily identified, service as required.

5. If the concerns remain after the inspection, determine the symptoms and go to the Symptom Chart.
