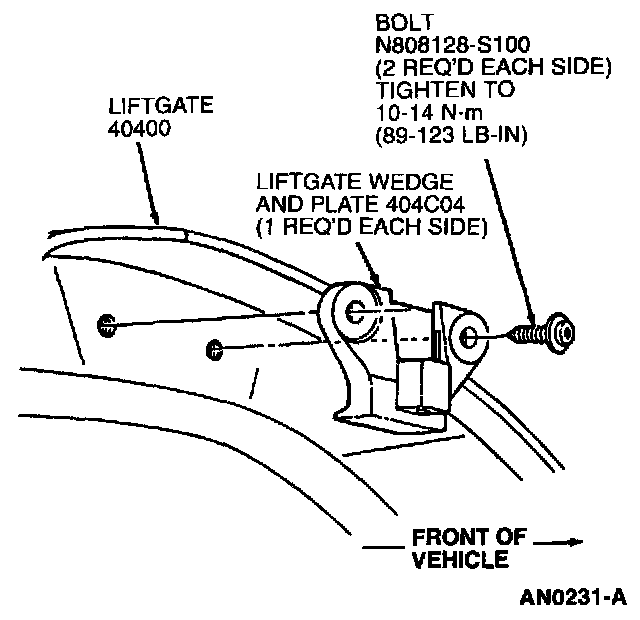

Liftgate Wedge and Plate
>>
Removal
Removal
1.
Open liftgate.
2.
Using a TORX T-30 wrench, remove two screws retaining liftgate wedge and plate from sides of liftgate.
