Removal

Liftgate



1 NOTE: Liftgate removal and installation is a two-man operation.

Before removing hinge4o-roof frame attachments at both liftgate hinges, use a felt marker or equivalent to mark the location of each liftgate hinge on roof frame being careful not to scratch paint.

2. Disconnect battery ground cable.

3. Open liftgate.

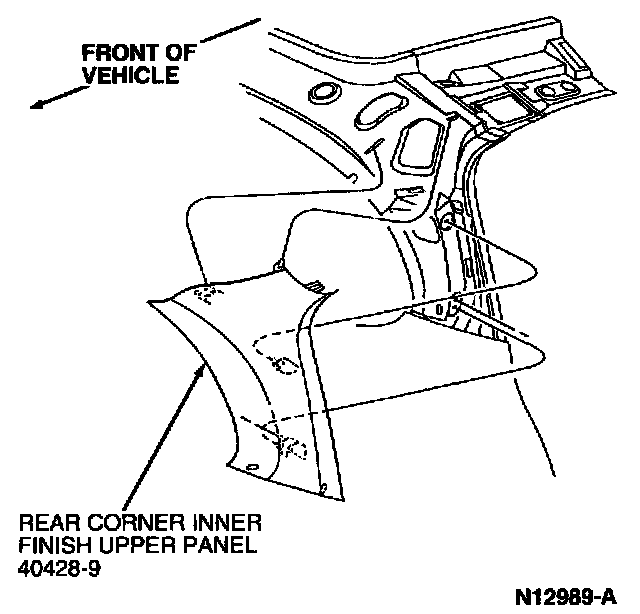

4. Remove rear corner upper finish panel.

5. Disconnect wiring loom connectors at top left and right D pillar posts.

6. Remove liftgate looms and rubber loom protectors from body.

7. Remove luggage compartment door hydraulic lifts as described.

8. NOTE: Do not remove Torx� head bolt and nut. They are used to locate the hinge to the body during installation.

Remove screw and nut retaining liftgate hinge to body.

9. Remove liftgate from vehicle.
