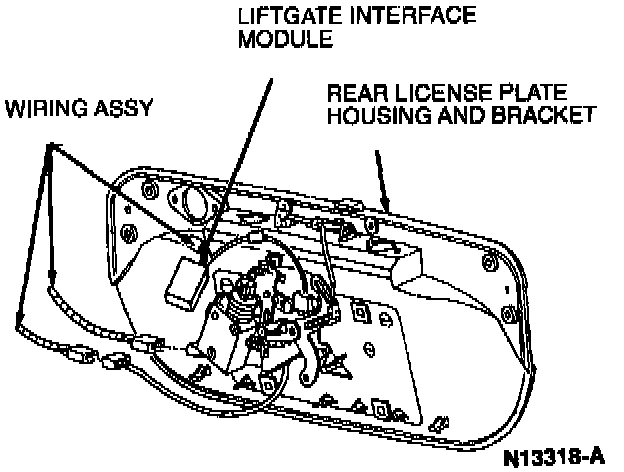

Liftgate Interface Module Removal and Installation






REMOVAL
1. Remove rear license plate housing and bracket.
2. Disconnect harness connector and liftgate disarm switch connector from liftgate interface module.
3. Remove liftgate interface module from rear license plate housing and bracket.

INSTALLATION
1. Follow removal procedure in reverse order.
