Alarm System Transponder: Service and Repair

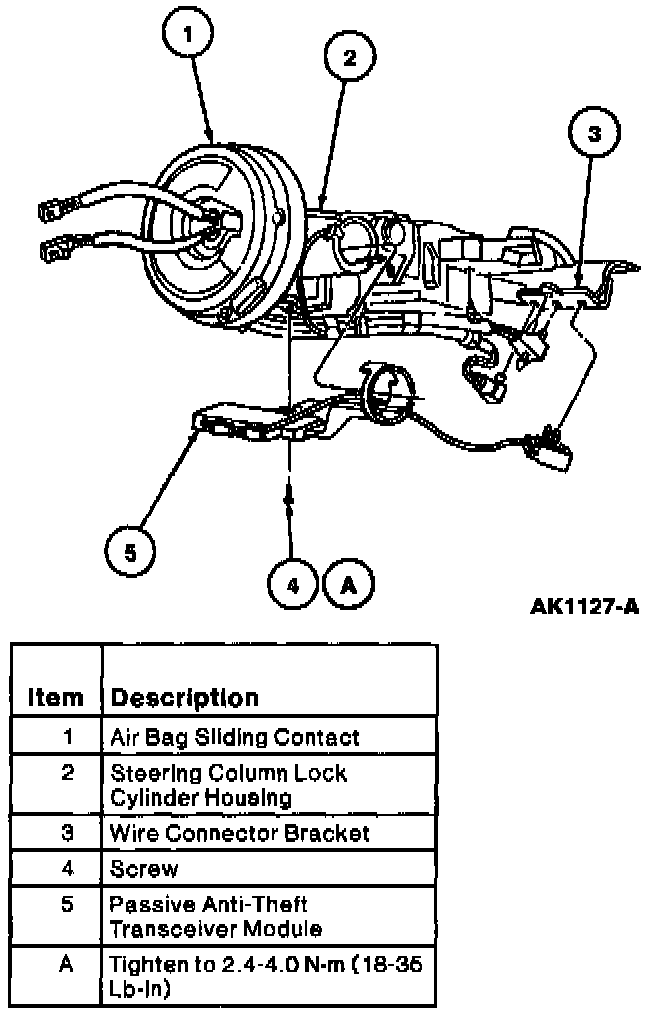

TRANSCEIVER






REMOVAL
1. Remove ignition switch lock cylinder from steering column housing.
2. Remove screw retaining anti-theft transceiver to steering column lock cylinder housing.
3. Locate rib on steering column lock cylinder housing, using a small screwdriver gently pry anti-theft transceiver over the rib.

NOTE: Only apply pressure or leverage below the key cylinder lower rib.

4. Disconnect anti-theft transceiver from steering column locators and wiring harness connector.

INSTALLATION
1. Locate post on transceiver module, and align to bottom slot of key cylinder barrel on steering column lock cylinder housing.
2. Apply even pressure to top surface of anti-theft transceiver and snap anti-theft transceiver over the casting rib on steering column lock cylinder housing.
3. Position the rib on transceiver case within the two walls of the cavity on the steering column lock cylinder housing, for anti-rotational purposes.
4. Install transceiver module retaining screw to steering column lock cylinder housing. Tighten to 1.8-2.6 Nm (16-23 Lb-In).
5. Connect anti-theft transceiver to steering column bracket, and connect harness connector.
6. Install ignition switch lock cylinder.
7. Check system for proper operation.
