Rear Door Window Regulator: Service and Repair

REMOVAL
1. Remove rear door window glass.

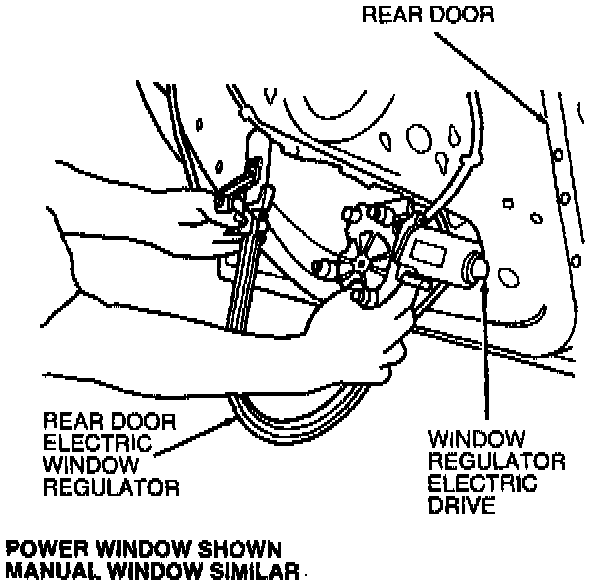

NOTE: Procedure also applies to manual window regulator.

2. Disconnect wiring harness from window regulator electric drive, if equipped.






3. Remove rear door window regulator from rear door.

INSTALLATION
1. To install, reverse Removal procedure.
2. Tighten rear door window regulator-to-rear door window glass retaining bolts to 8 Nm (71 in lb).
3. Tighten rear door window-to-rear door retaining bolts to 5 Nm (44 in lb).
