Home >> Mercury >> 1997 >> Mystique V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Regulator >> Front Door Window Regulator >> Service and Repair >> Power Window Regulator

Power Window Regulator

REMOVAL
1. Remove window regulator.

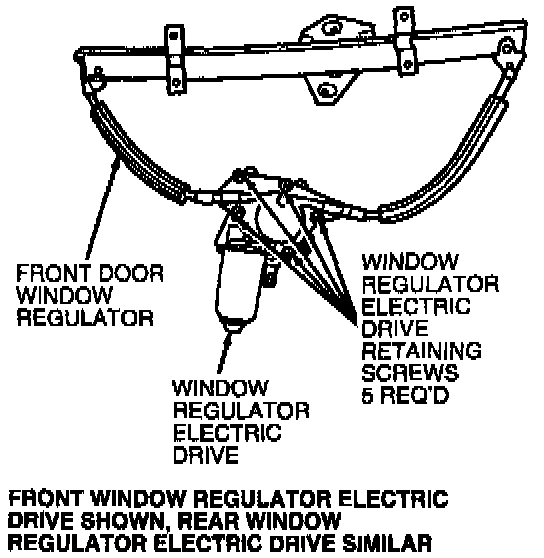

2. Remove five screws retaining window regulator electric drive to window regulator. Remove window regulator electric drive.

INSTALLATION
1. To install, reverse Removal procedure.
