Seals and Gaskets: Service and Repair

REMOVAL
1. Remove front wheel driveshaft and joint.

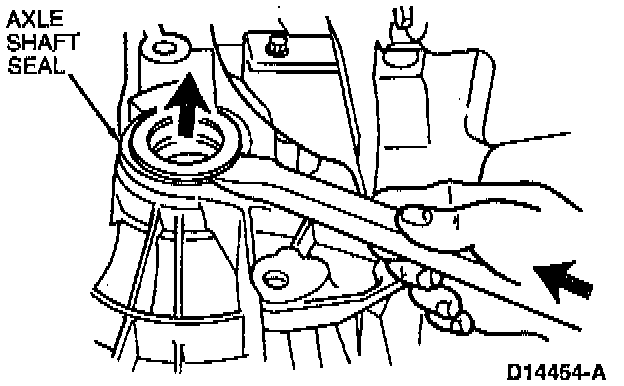

2. Remove differential oil seal using a flat chisel.





INSTALLATION

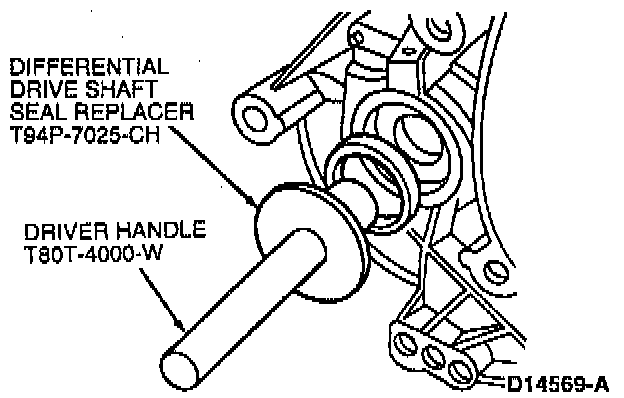

1. Use Differential Driveshaft Seal Replacer T94P-7025-CH with Driver Handle T80T-4000-W to install differential oil seal.
2. Install the front wheel driveshaft and joint.
