Disassembly and Assembly

DISASSEMBLY
1. Remove intermediate halfshaft.

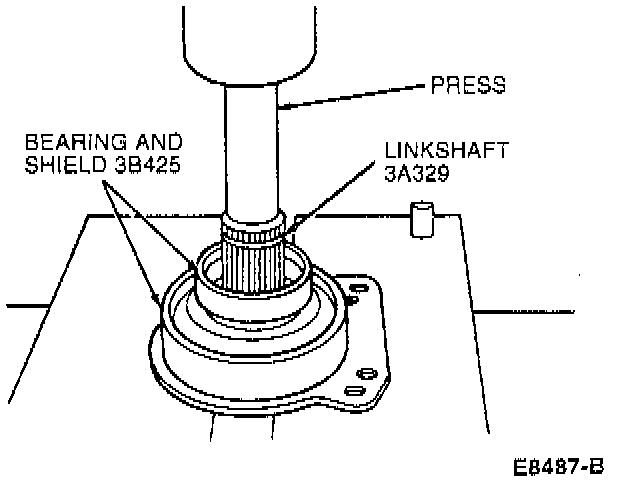

2. Position intermediate halfshaft in press. Remove bearing and dust shield from intermediate halfshaft.





ASSEMBLY
1. Position intermediate halfshaft in press.

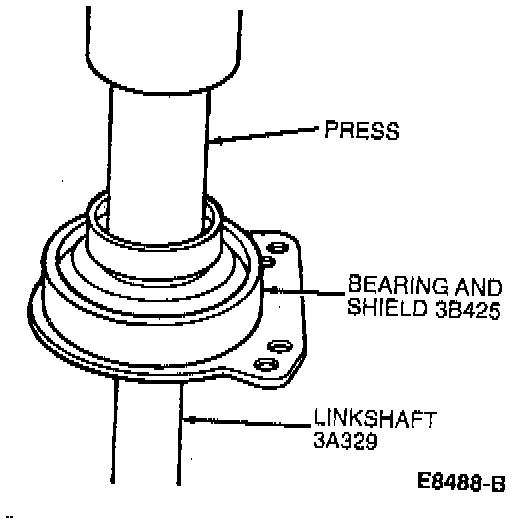

2. Press bearing onto intermediate halfshaft until it seats against shoulder.
3. Install dust shield into bearing support.
4. Install intermediate halfshaft.
