Intake Manifold

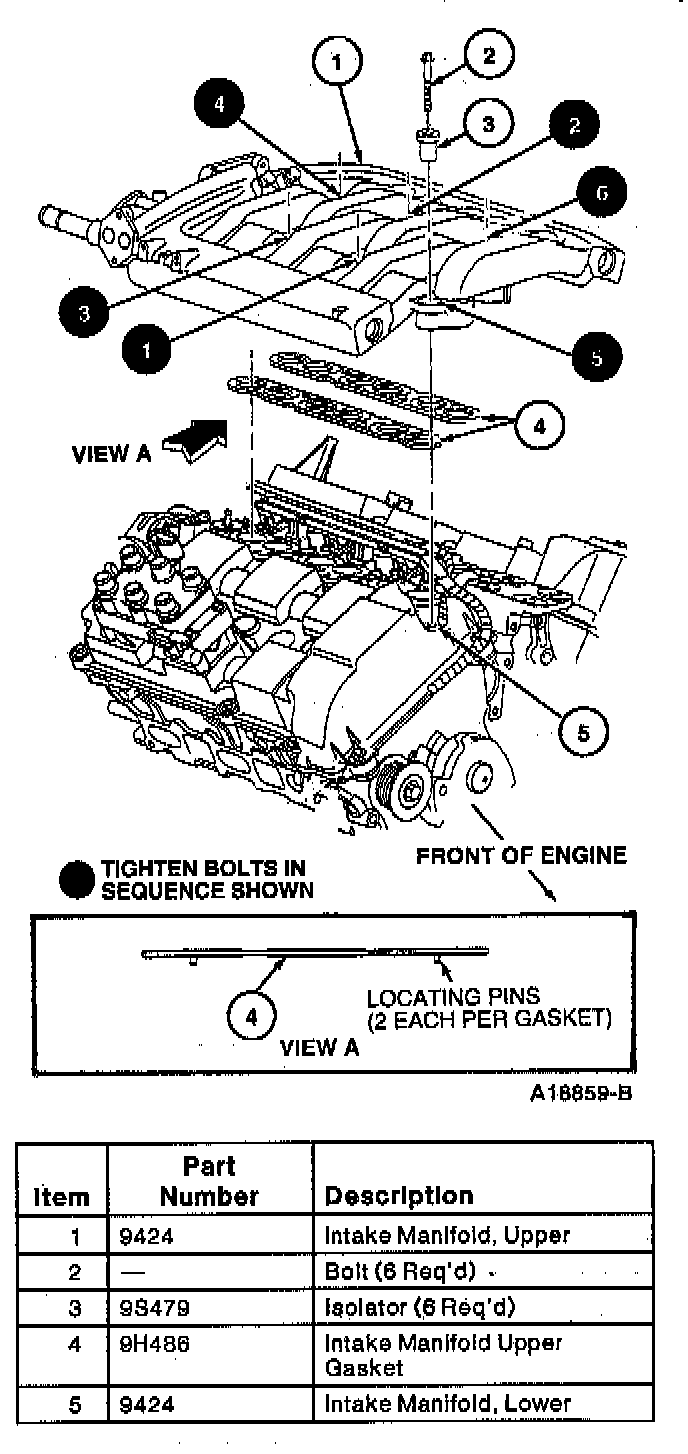

UPPER INTAKE





Tighten retaining bolts in sequence shown to 8-12 Nm (71-106 inch lbs.).

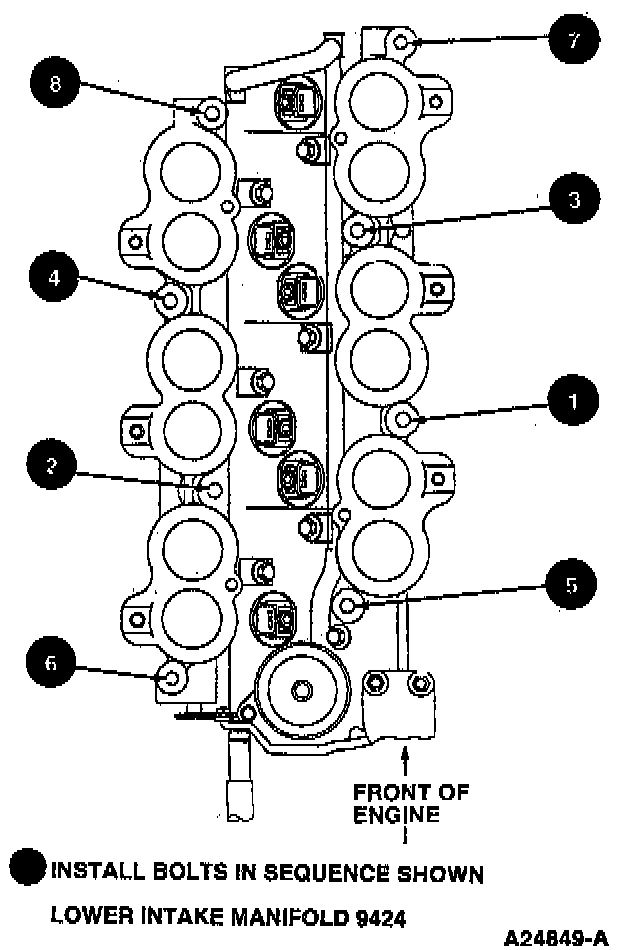

INTAKE MANIFOLD RUNNER CONTROL (IMRC)





Tighten retaining bolts in sequence shown to 8-12 Nm (71-106 inch lbs.).

THROTTLE BODY
Install throttle body, new throttle body gasket and the retaining bolts and stud bolt to the intake manifold. Tighten retaining bolts and stud bolt to 8-12 Nm (71-106 lb-in).
