With Automatic Transmission

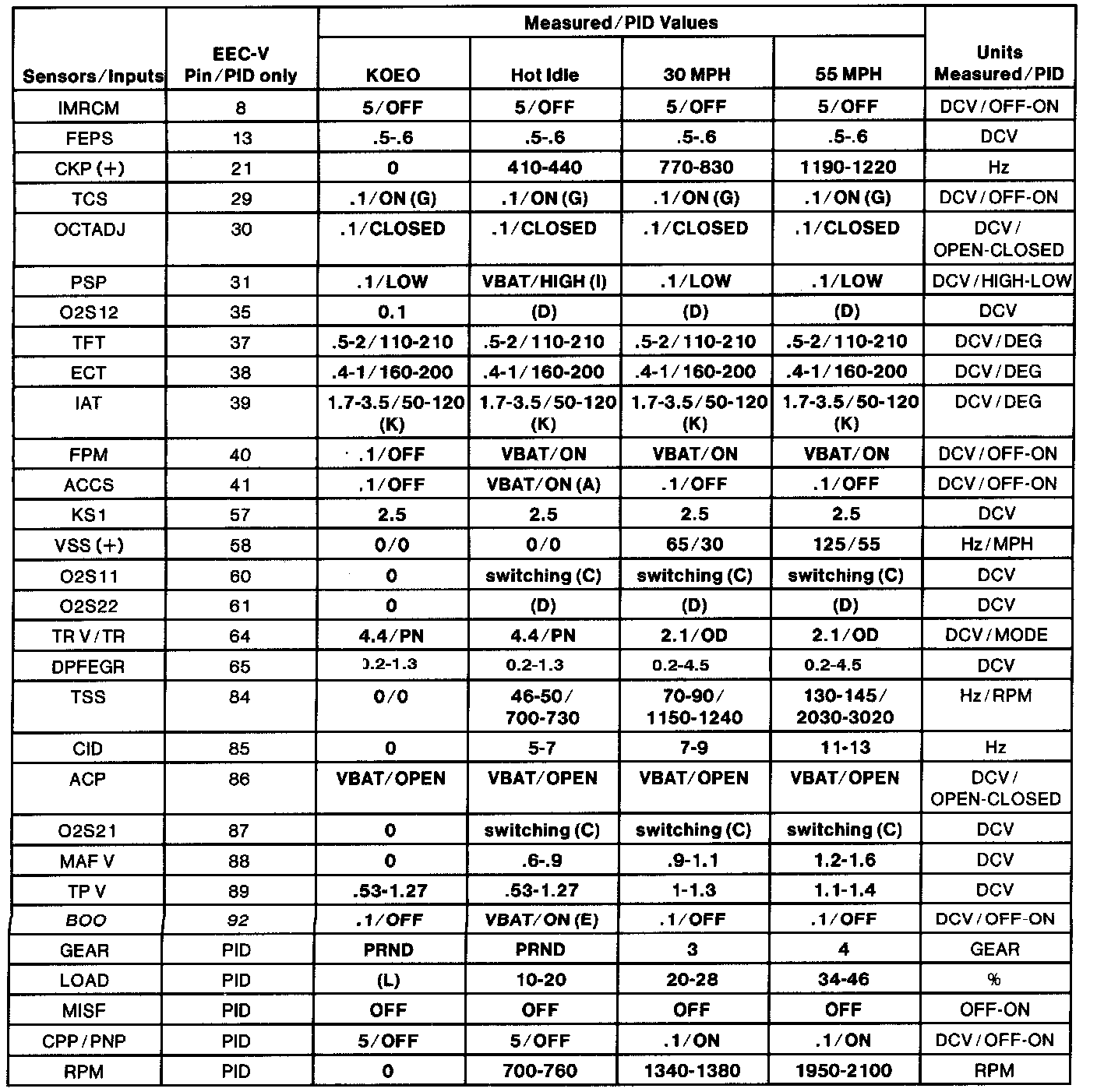

TYPICAL DIAGNOSTIC REFERENCE VALUES

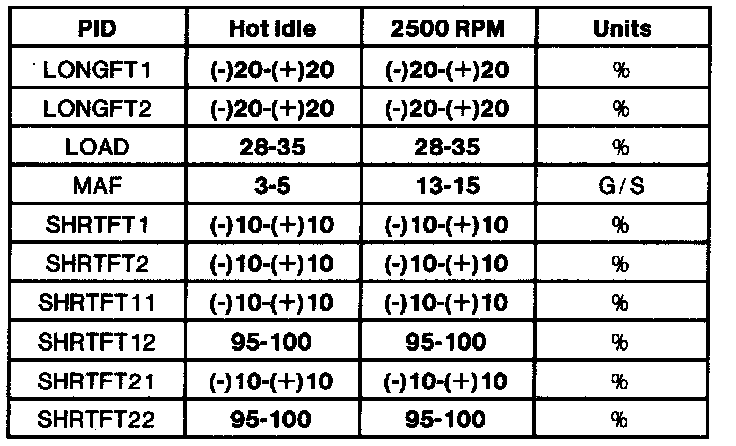

GENERIC OBD II PID VALUES

NOTES:

- These footnotes are referenced throughout the Typical Diagnostic Reference Value Charts. A letter in parentheses next to a value indicates supplemental information is applicable.

- An attempt is made to provide as much information as possible; some vehicles may not display all input and output signals.

- Reference values may vary ± 20% depending on operating conditions and other factors. RPM values are axle and tire dependent.

- Downstream O2S (12, 22) will only switch lean to rich when catalyst monitor is active.

(A.) A/C ON.

(B.) Cooling fan ON (single, low or high speed).

(C.) O2S(s) should switch from rich to lean at least once every 3 seconds. O2S voltage should toggle above and below 0.450 DCV and never be a negative value. Valid O2S switching only occurs during closed loop fuel control.

(D.) Downstream O2S(S) will stay at a constant voltage when the catalyst monitor is OFF (positive value only). When the catalyst monitor is ON, O2S will switch rich to lean above and below 0.450 DCV and never be a negative value.

(E.) Brake pedal applied.

(F.) Catalyst monitor OFF.

(G.) With Transmission Control Switch (TCS) ON, overdrive enabled.

(H.) Values shown are commanded by the PCM and may not be actual.

(I.) Steering wheel turned.

(J.) Clutch pedal applied.

(K.) Value is dependent upon ambient air temperature and may fall outside of range.

(L.) Value is not useful under this condition.

(M.) If equipped.

(N.) Transmission in selected range.

(O.) Headlamps ON.

(P.) Rear defrost ON.

(Q.) Blower motor ON.

(R.) Values recorded using 100% gasoline.

(S.) May change state under this condition.
