Front Seat Back Trim Cover

REMOVAL
1. Remove front seat back.
2. Remove front seat back head restraint.






3. Remove front seat head rest guide rod sleeve. Remove manual seat back lumbar control handwheel center cap and remove lumbar control handwheel, if equipped.

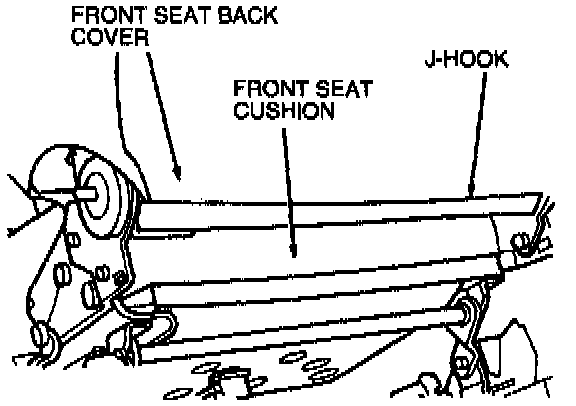

4. Release J-retainer at rear of front seat back cover.
5. Roll front seat back cover upward toward top of seat back.
6. Cut hog rings retaining front seat back cover at lumbar area.
7. Remove front seat back cover.

INSTALLATION
1. To install, reverse Removal procedure.
