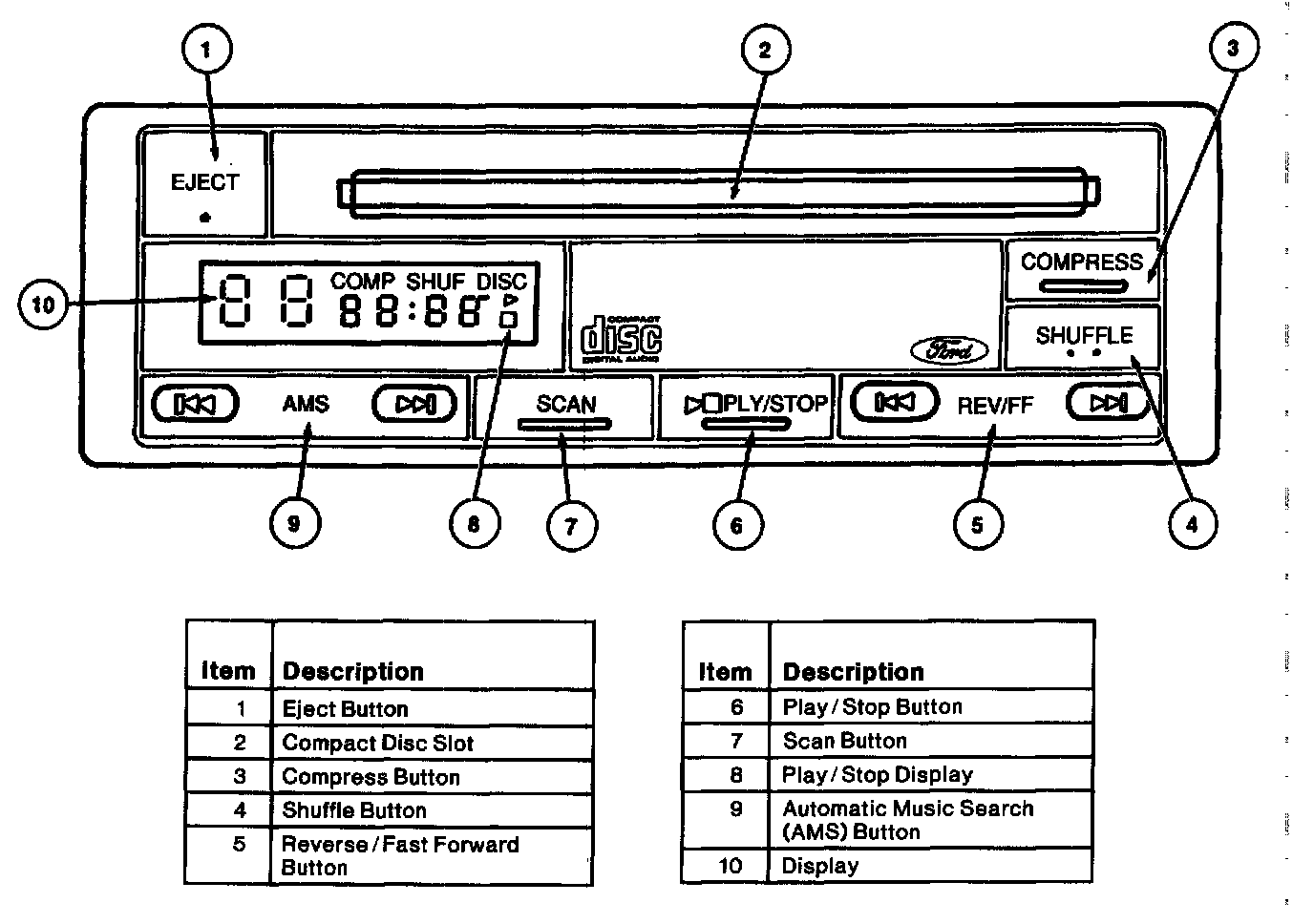

Digital Audio Compact Disc Player

Features
The Electronic Search Radio with Digital Audio Compact Disc Player Chassis is designed to diagnose and display the following conditions:
- Error - Disc focus error, usually means disc was inserted upside-down.
- Too Hot - The disc mechanism will stop playing if the temperature reaches 75°C (167°F).

Operation
The digital audio compact disc player has heat protection circuitry to protect the laser diode. If the temperature of the digital audio compact disc player reaches 75°C (167°F), the heat detection circuit will shut off the digital audio compact disc player and HOT will appear in the display. When the temperature is withing normal operating range the HOT indicator will turn off and the digital audio compact disc player will again be operational.

Refer to Audio System Operating Guide for complete operating guidelines.
