Wiper Motor Timer: Service and Repair
REMOVAL1. Disconnect battery ground cable.

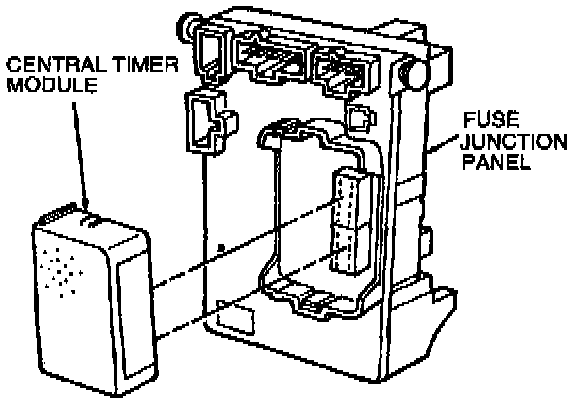

2. Pull central timer module straight away from fuse junction panel. Remove central timer module.
INSTALLATION
1. To install, reverse Removal procedure.
1. Disconnect battery ground cable.
2. Pull central timer module straight away from fuse junction panel. Remove central timer module.
INSTALLATION
1. To install, reverse Removal procedure.
