Component Tests and General Diagnostics

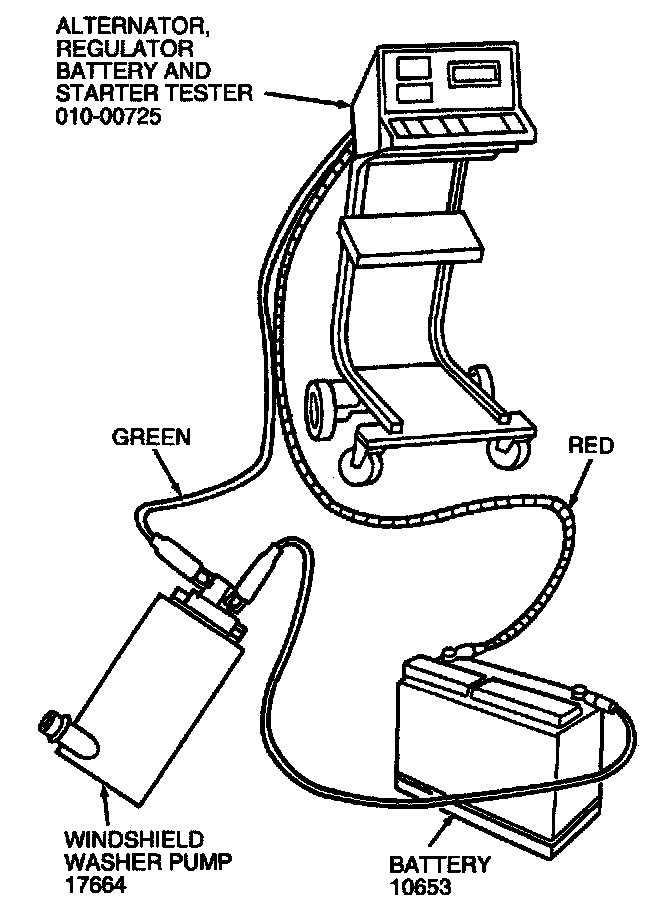

Connect leads of the volt-amp tester, such as Rotunda Alternator, Regulator, Battery and Starter Tester 010-007-5 and Rotunda Digital Volt-Ohmmeter 014-00407 or equivalent. Current draw should not exceed four amps, or indicate less than two amps while the windshield washer pump is pumping fluid.
