Assembly

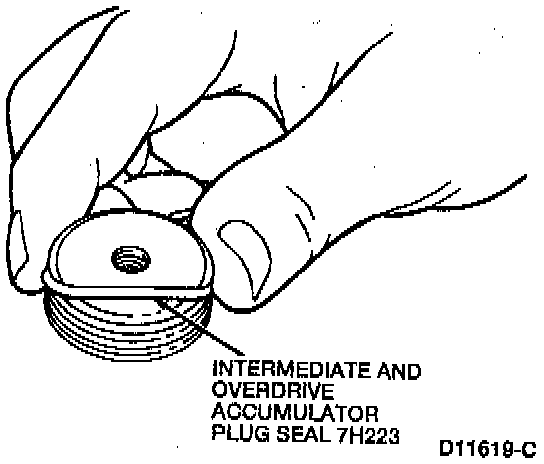

1. Install a new intermediate and overdrive accumulator plug seal on the Intermediate and Overdrive accumulator valve plug and coat with petroleum jelly.

NOTE: Store main control in clean location until re-assembly.

Accumulator Valve Plug Installation:

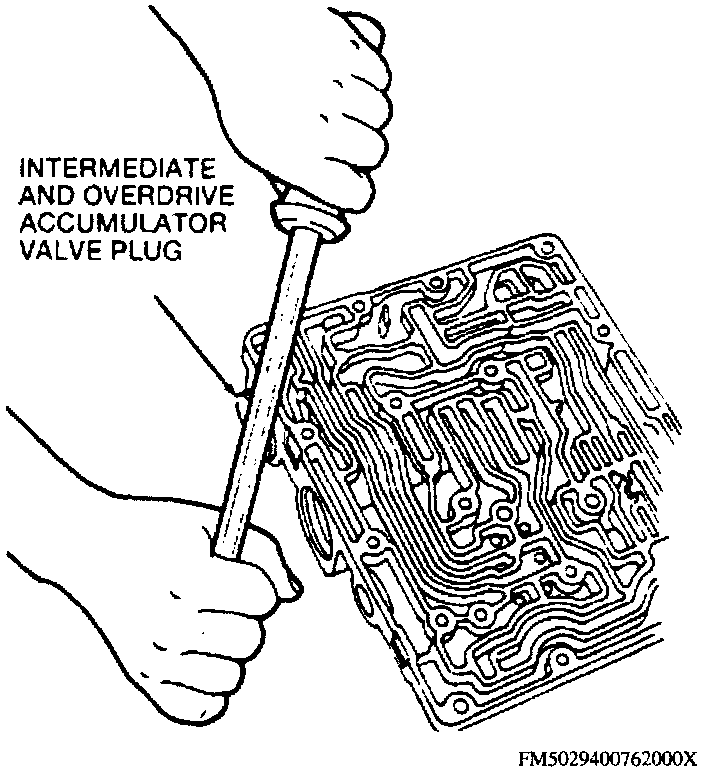

2. Use a screwdriver to install the intermediate and overdrive accumulator valve plug in the accumulator body assembly.

CAUTION: Prevent the intermediate and overdrive accumulator valve plug and seal from going too far into the bore and damaging the seal. Only push the low and intermediate accumulator valve plug until it is flush with accumulator body assembly.

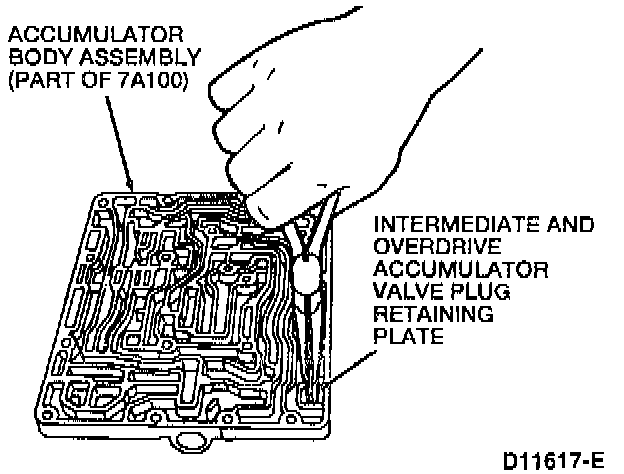

3. Install the intermediate and overdrive accumulator valve plug retaining plate.

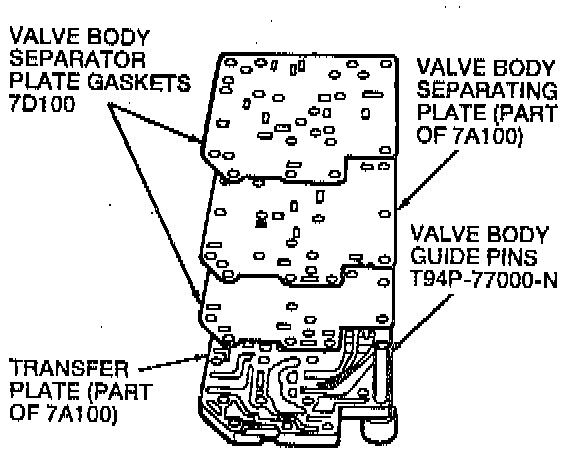

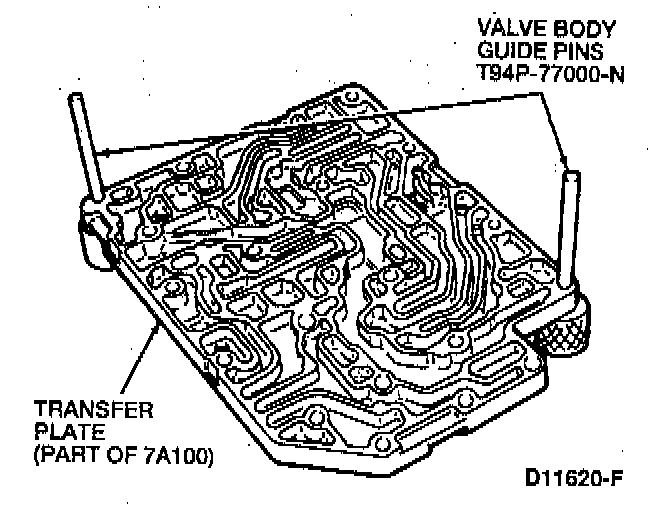

4. Install Valve Body Guide Pins T94P-77000-N in the transfer plate.





5. Install the main control to case gaskets and valve body separator plate on the transfer plate.

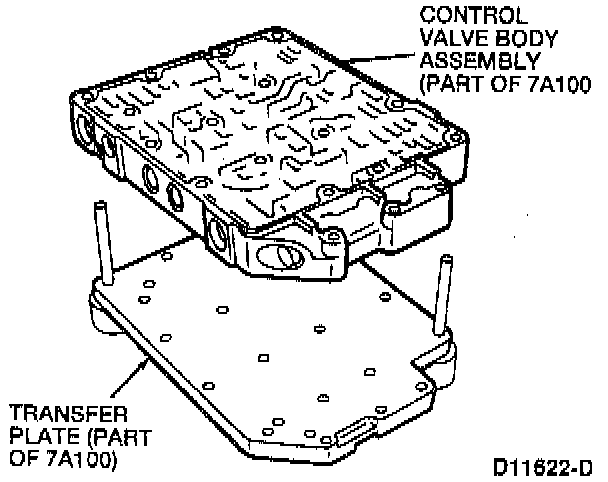

6. Install the control valve body assembly.

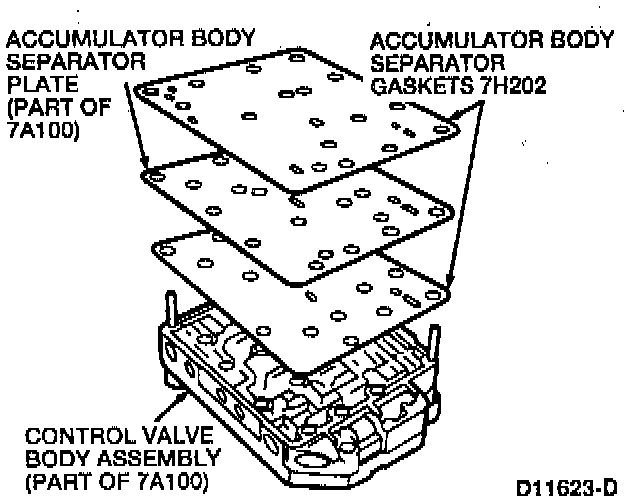

7. Install the accumulator body separator plate and gaskets on the control valve body assembly.

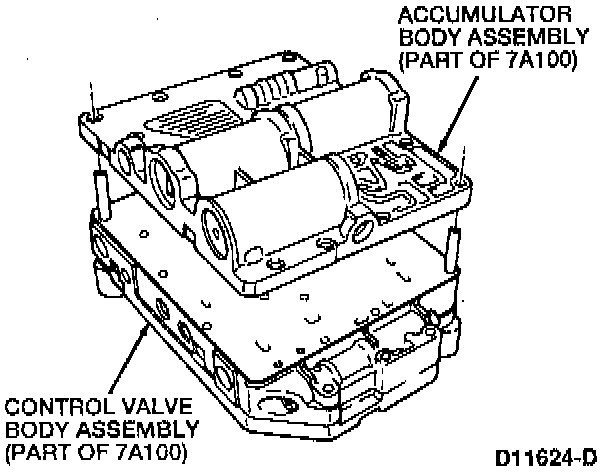

8. Install the accumulator body assembly.

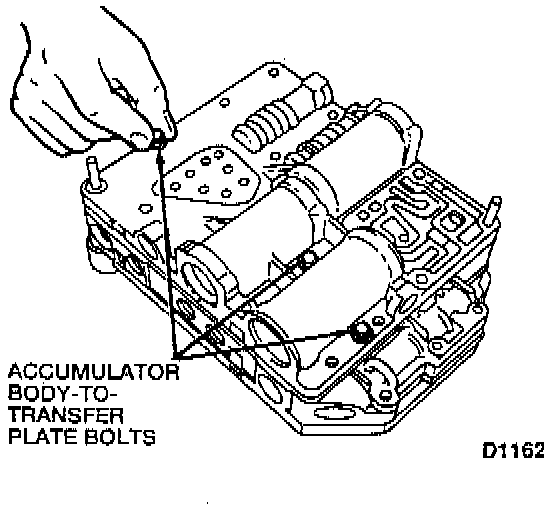

9. Install and tighten the three accumulator body-to-transfer plate bolts to 11-13 Nm (98-115 inch lbs.). Start with the middle bolt.

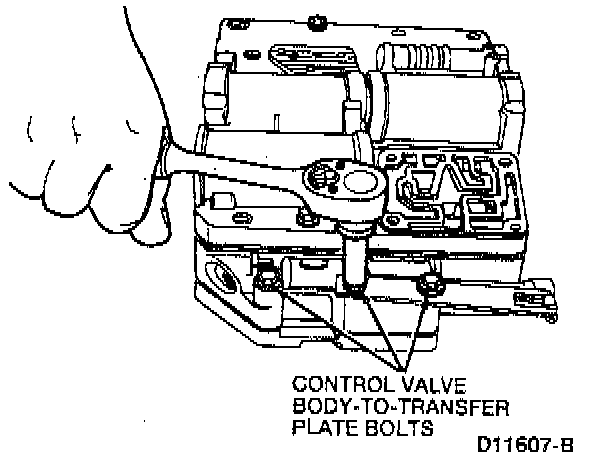

10. Install the three control valve body-to-transfer plate bolts and manual valve detent spring assembly. Tighten the control valve body-to-transfer plate bolts to 11-13 Nm (98-115 inch lbs.). Start with the middle bolt.

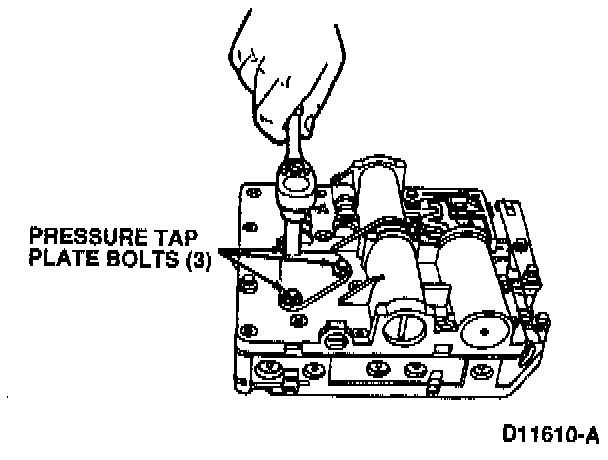

11. Install the pressure tap plate, gasket and three bolts on the accumulator body assembly. Tighten the pressure tap plate bolts to 7-9 Nm (62-79 inch lbs.)

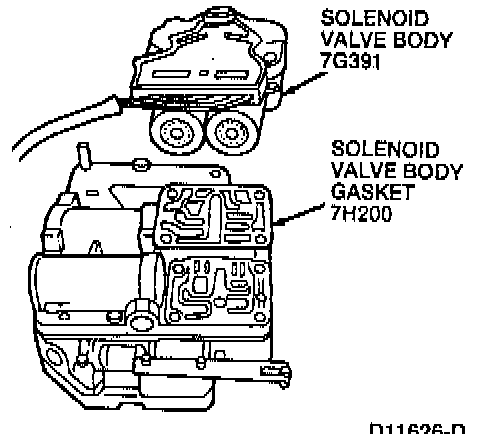

12. Install the solenoid valve body and solenoid valve body gasket on the accumulator body assembly.

NOTE: Match the solenoid valve body gasket to passages.

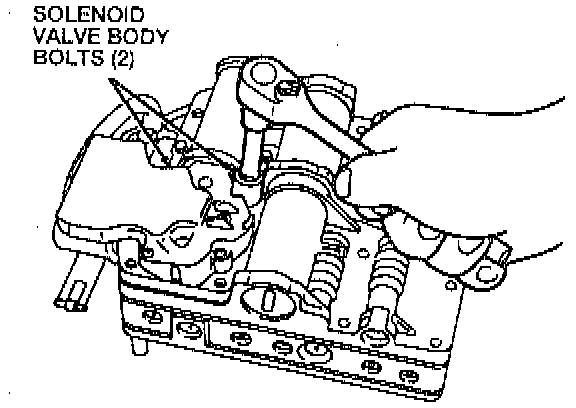

13. Install the two solenoid valve body bolts. Tighten the solenoid valve body bolts to 9-11 Nm (80-97 inch lbs.).
14. Remove the valve body guide pins.
15. Install manual valve.
