Disassembly

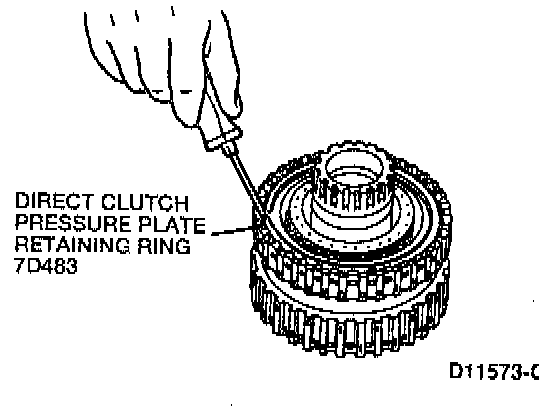

1. Remove the direct clutch pressure plate retaining ring.

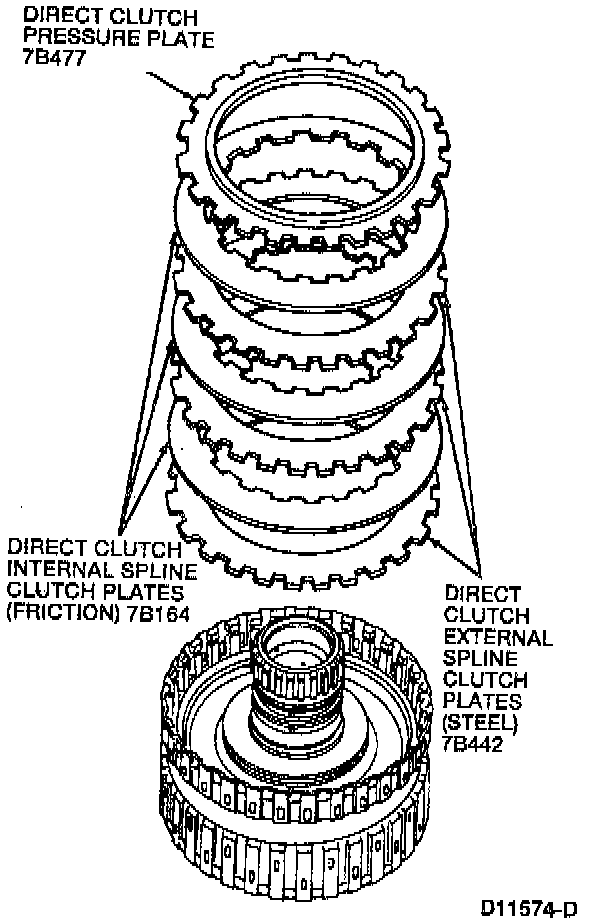

2. Remove the direct clutch plates.





3. Use Clutch Spring Compressor T65L-77515-A to compress the direct clutch return spring assembly.

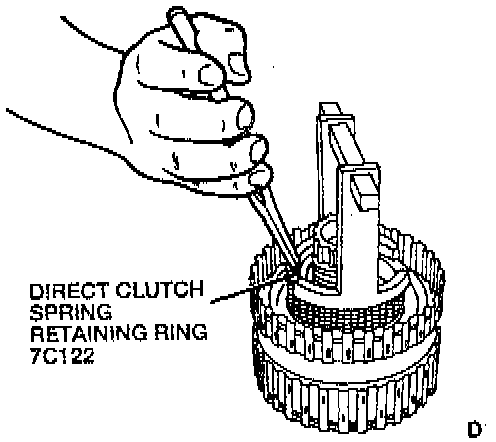

4. Use a pair of snap ring pliers to remove the direct clutch spring retaining ring.

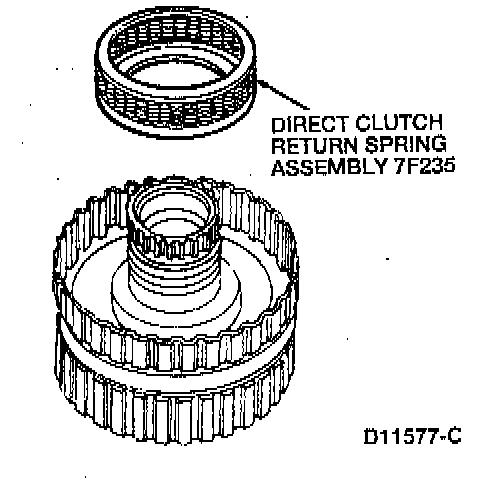

5. Remove the spring compressor and remove the direct clutch return spring assembly.

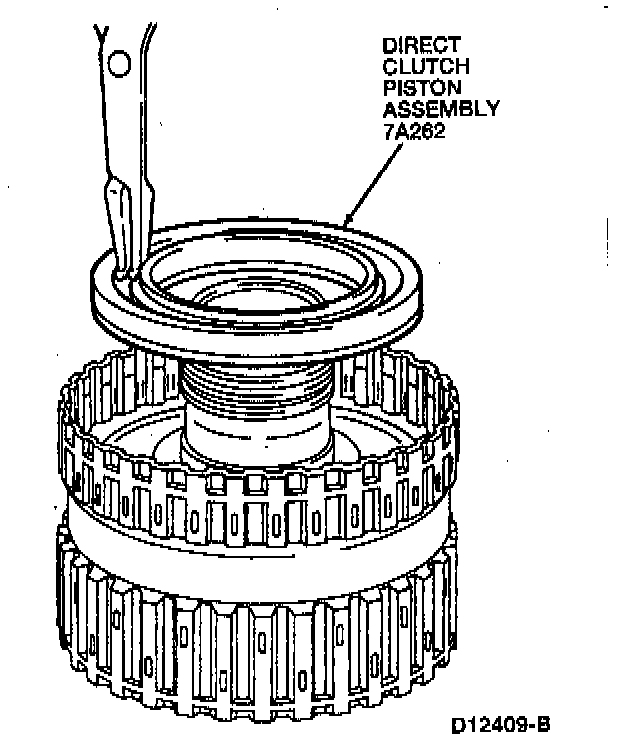

6. Remove the direct clutch piston assembly.

Direct Clutch Piston Outer Lip Seal Installation:

7. Remove the direct clutch piston outer lip seal from the direct clutch piston assembly. Discard the seal.





8. Remove the direct clutch piston inner lip seal from the forward/coast/direct clutch cylinder assembly. Discard the seal.

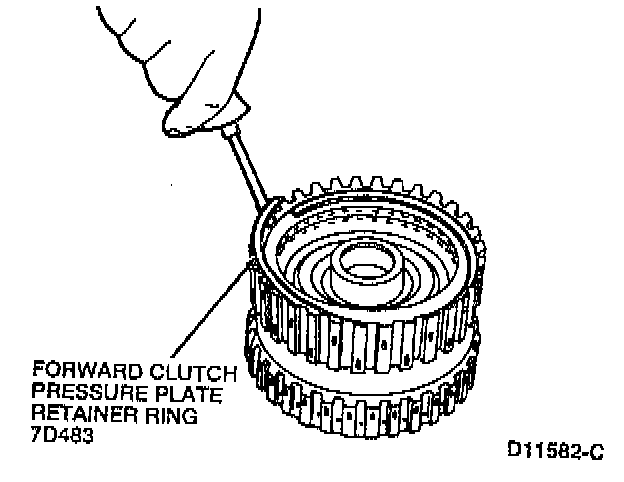

9. Turn the forward/coast/direct clutch cylinder over. Remove the forward clutch pressure plate retaining ring

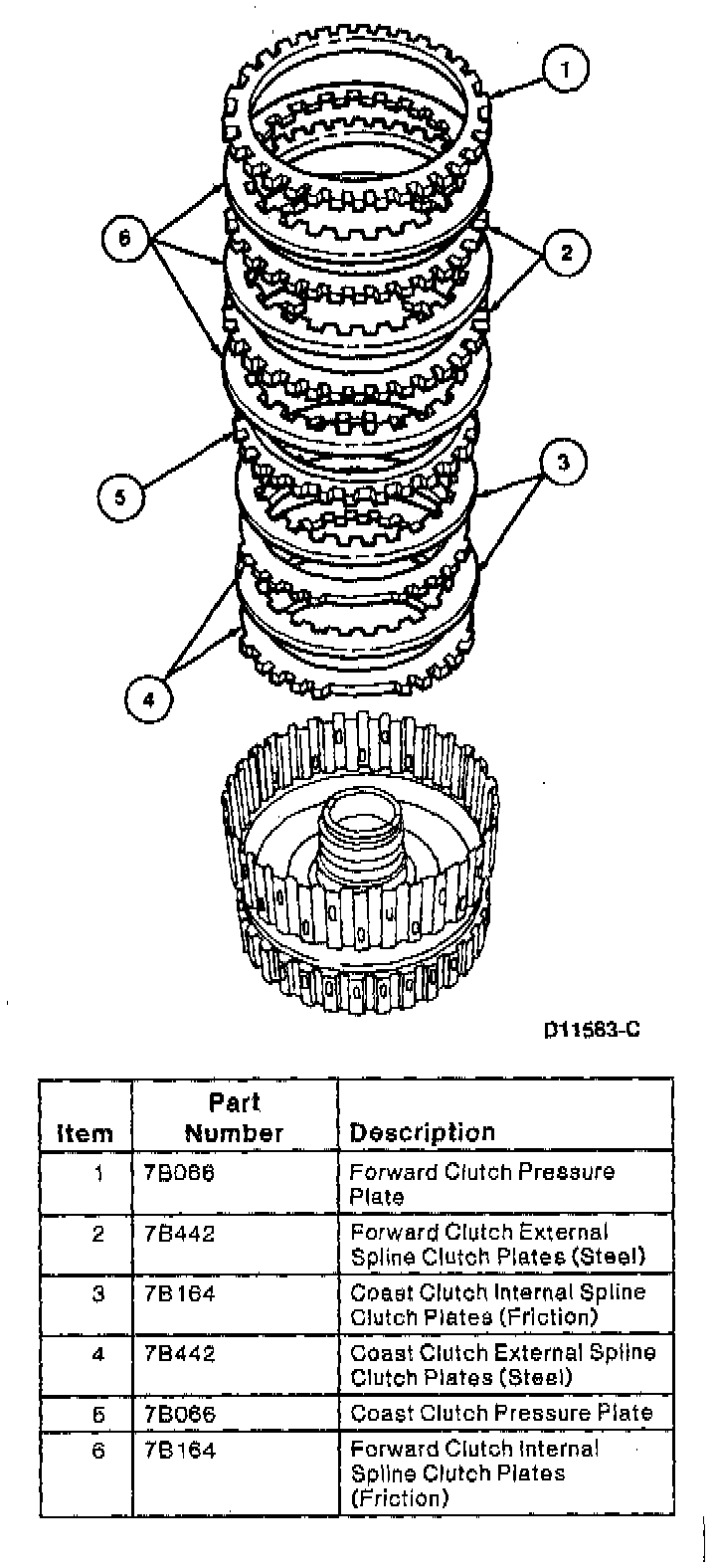

10. Remove the forward and coast clutch plates.

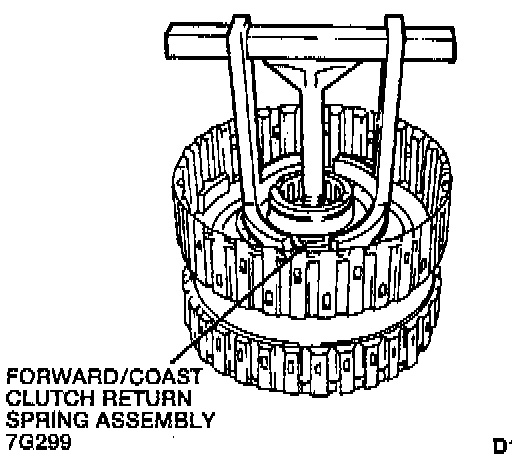

11. Use Clutch Spring Compressor T65L-77515-A to compress the forward/coast clutch return spring assembly.

Forward/Coast Clutch Return Spring Compression:

12. Use a pair of snap ring pliers to remove the forward clutch spring retaining ring.

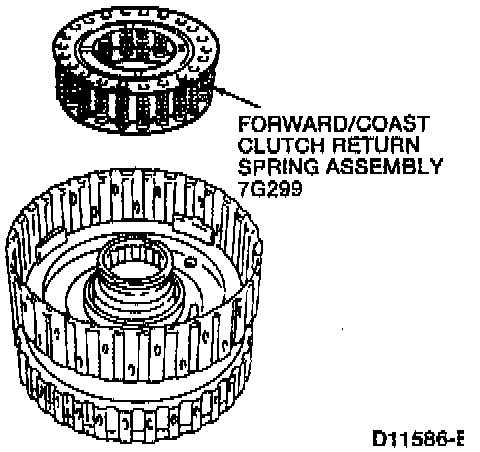

13. Remove the spring compressor and the forward/coast clutch return spring assembly.

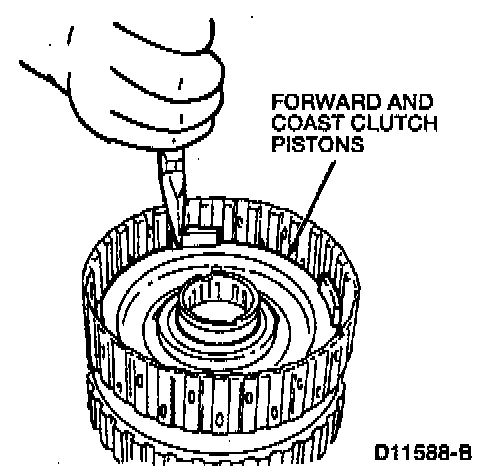

14. Use a pair of needle nose pliers to remove the forward and coast clutch pistons.

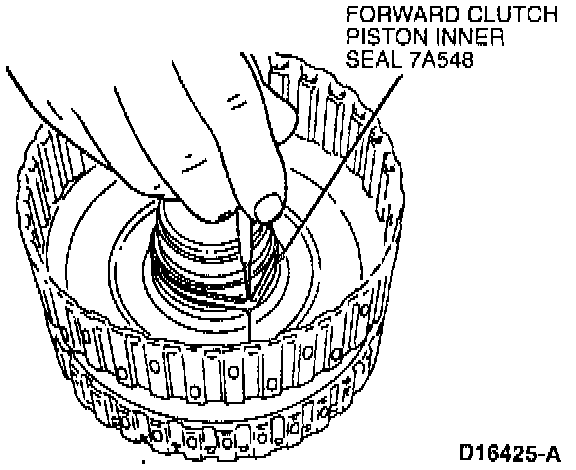

15. Use O-Ring Tool T71P-19703-C to remove the forward clutch piston inner seal from the forward/coast/direct clutch cylinder assembly. Discard the seal.

Forward Clutch Piston Outer Lip Seal Installation:

16. Remove the forward clutch piston outer lip seal. Discard the seal.

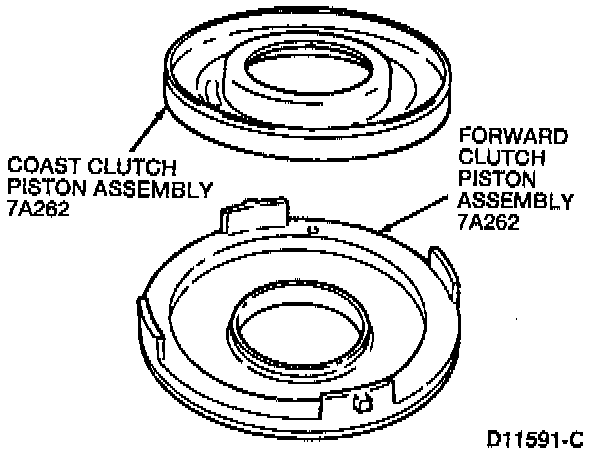

17. Separate the coast clutch piston assembly with integral seal from the forward clutch piston assembly.
18. Clean all parts thoroughly in a clean solvent and blow dry with moisture-free compressed air. To clean the clutch plates, wipe them off with a lint-free cloth. New clutch plates should be soaked in the specified transmission fluid for 15 minutes before being assembled.

NOTE: The clutch plates should not be cleaned in a vapor degreaser or with any other type of detergent solution.

19. Inspect the parts for damage and wear:
^ spline teeth
^ clutch plates
^ seals
^ bushing
^ check balls in pistons
^ piston bore
^ passages and lube holes in the F/C/D clutch cylinder
