Camshaft Bearing Cap

TIGHTENING SPECIFICATIONS

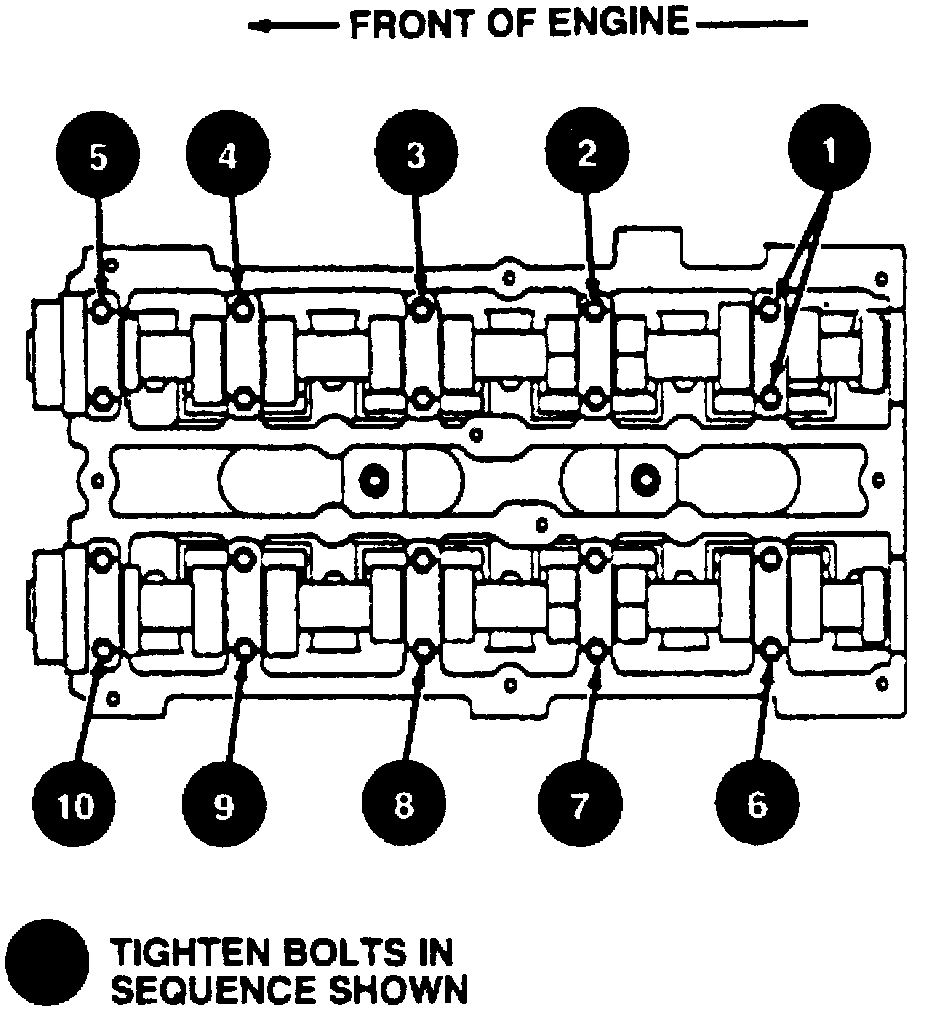

Fig. 21 Cylinder head camshaft journal cap tightening sequence:

NOTE: Tighten bolts in pairs.

Step 1 ... Gradually tighten the cylinder head camshaft journal cap retaining bolts in several passes, following the sequence shown.
Step 2 ... Final tighten the retaining bolts to 13 Nm (115 inch lbs.).
