Wiper Switch: Service and Repair

REMOVAL
1. Disconnect battery ground cable.

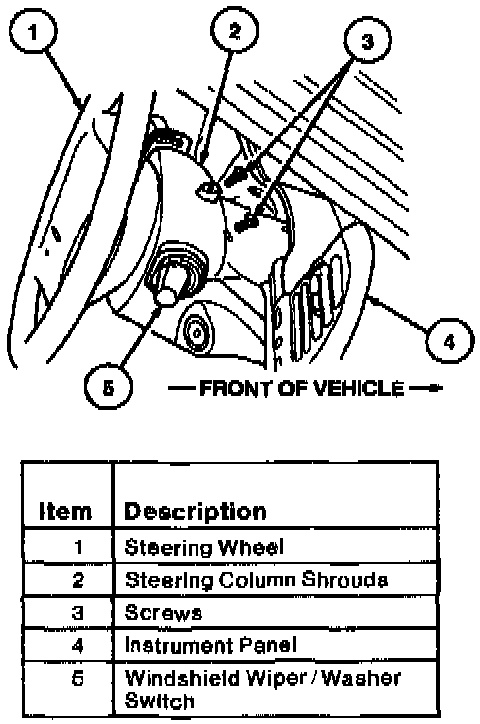

2. Remove retaining screws and steering column shrouds.

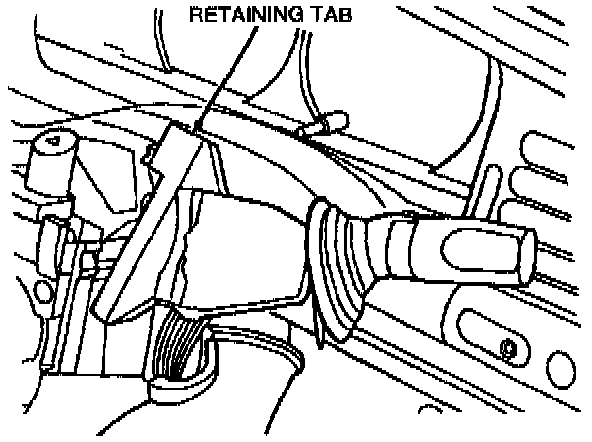

3. Press the windshield wiper/washer switch retaining tab and pull away from steering column.
4. Disconnect wiring connector from windshield wiper/washer switch. Remove windshield wiper/washer switch.

INSTALLATION
1. To install, reverse Removal procedure.
