Component Tests and General Diagnostics

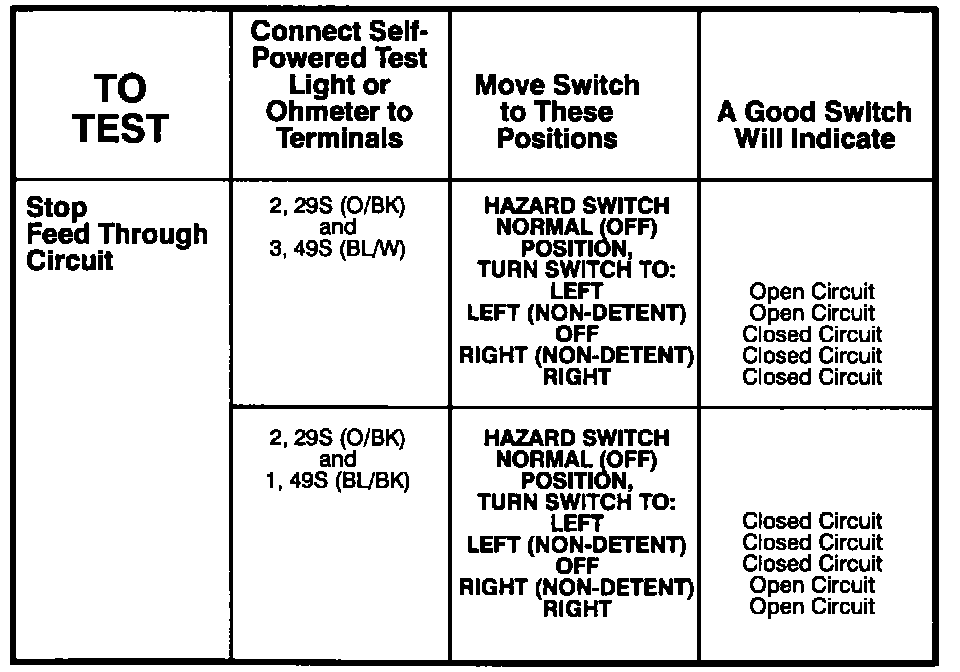

Combination Switch - Component Testing Procedure:




Combination Switch - Component Testing Procedure:

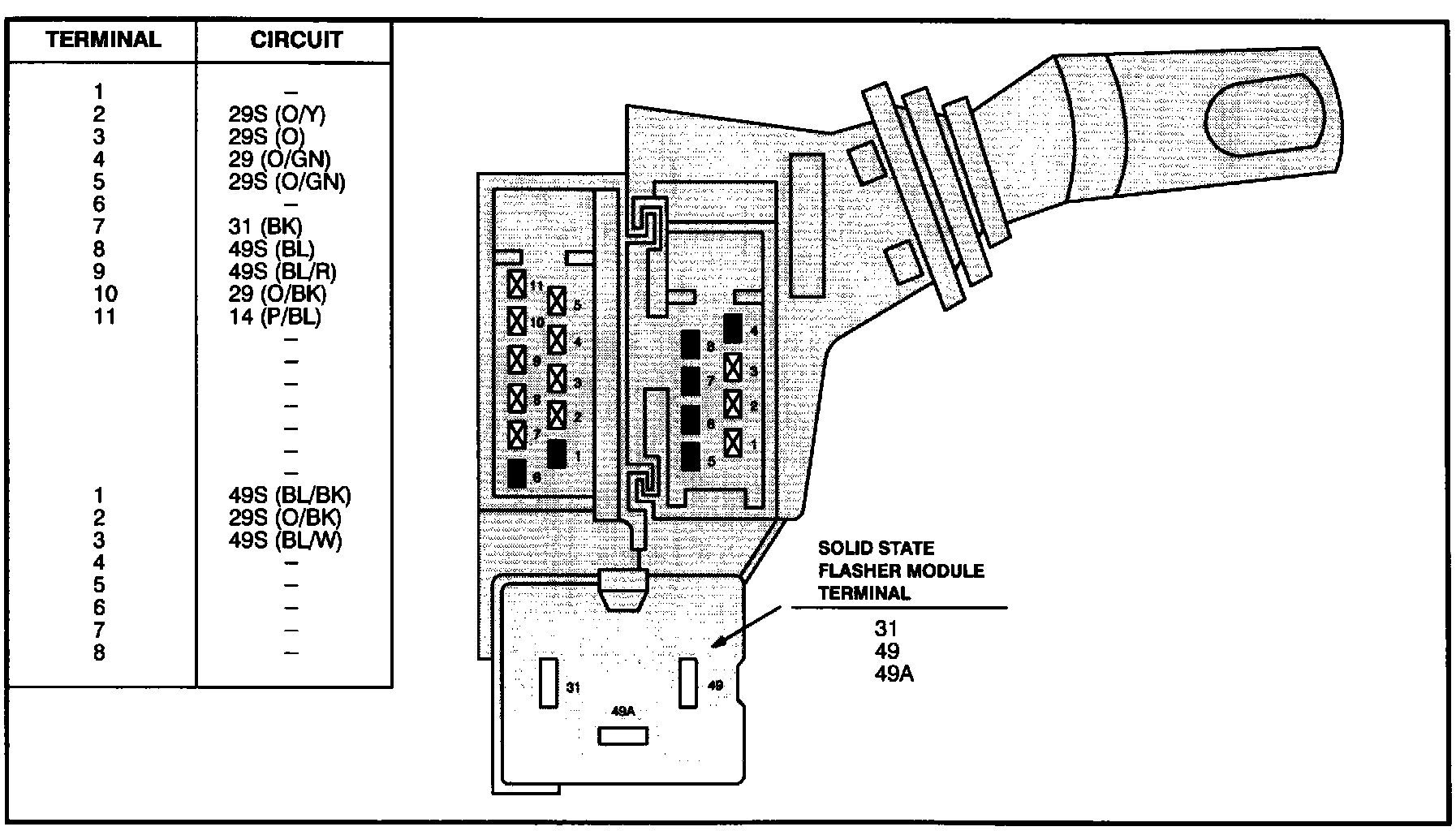

Combination Switch - Terminal Locations:

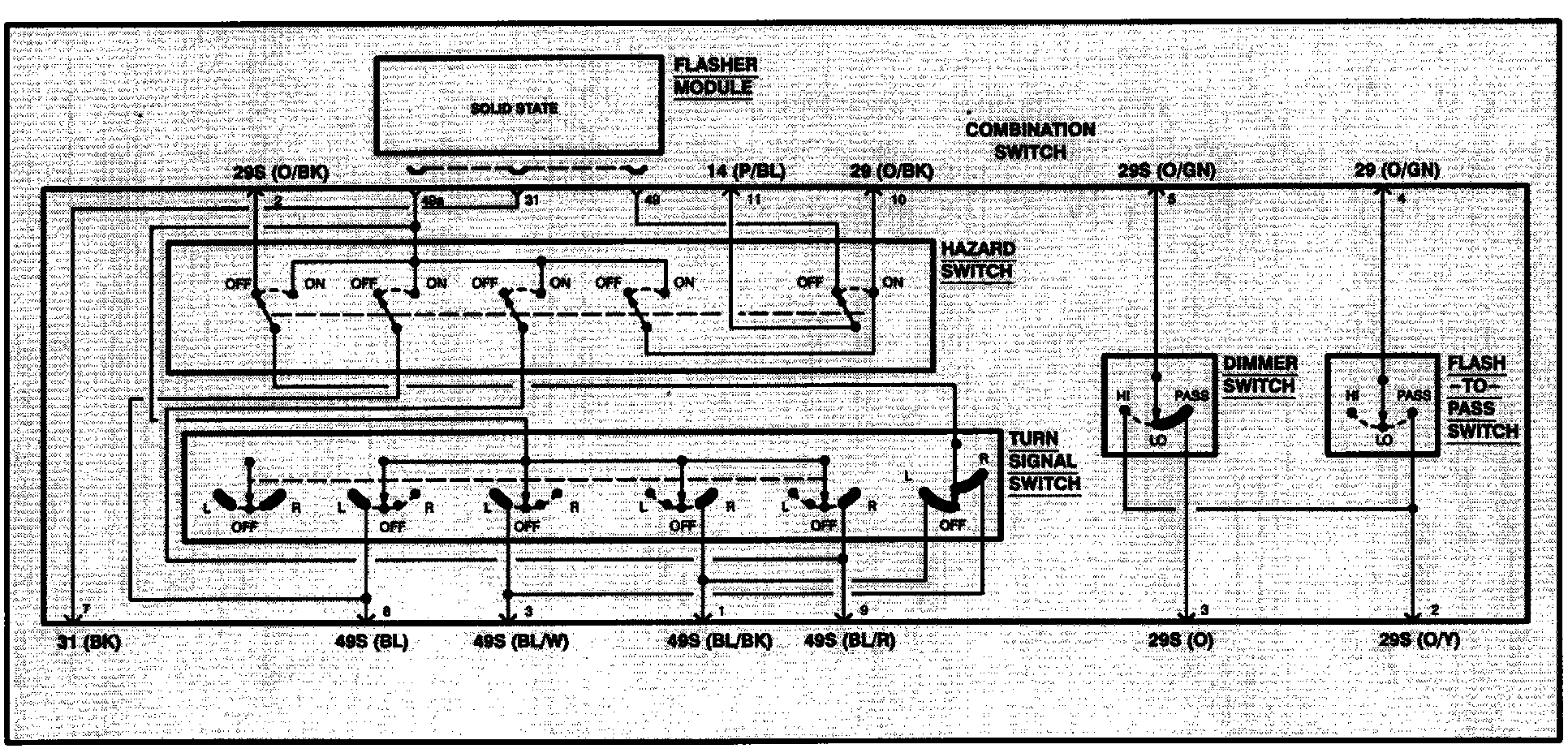

Combination Switch - Schematic:
